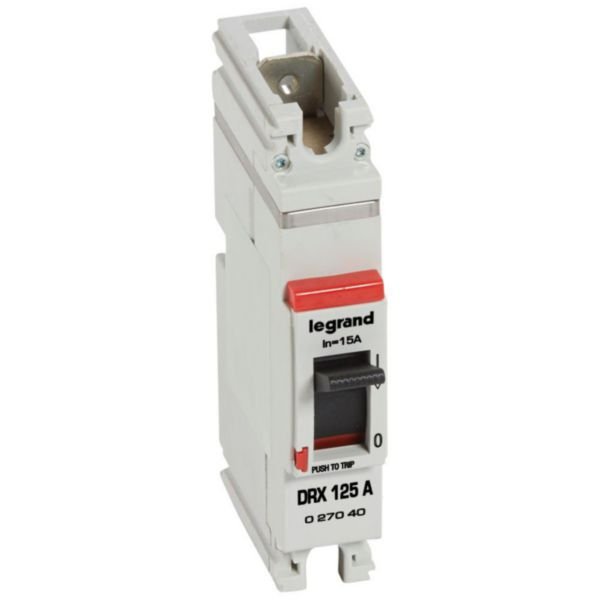

MCCB DRX 125 Thermal Magnetic Circuit Breaker | Icu 25 kA | 15 A Rated Current | DIN Rail Mountable | @Each of 1 | by Legrand
The MCCB DRX 125 Thermal Magnetic Circuit Breaker is designed for reliable overload and short-circuit protection, featuring a breaking capacity of 25 kA at 220/240 V~. Ideal for residential, commercial, and industrial applications, this single-pole (1P) breaker ensures safety and compliance with IEC standards, making it perfect for DIN rail mounting in electrical panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCCB DRX 125 Thermal Magnetic Circuit Breaker | Icu 25 kA | 15 A Rated Current | DIN Rail Mountable | @Each of 1 | by Legrand
Brand: Legrand
SKU: 027040
Alternatively Known As: Moulded Case Circuit Breaker, Thermal Magnetic MCCB, Legrand DRX 125 Circuit Breaker, 15 Amp MCCB
Technical Specifications
- Rated permanent current: 15 A
- Rated voltage: 110-550 V
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz: 36 kA
- Overload release current setting: 15-15 A
- Adjustment range short-term delayed short-circuit release: 400-400 A
- Adjustment range undelayed short-circuit release: 400-400 A
- Device construction: Built-in fixed technique
- Integrated earth fault protection: No
- Type of electrical connection: Screw connection
- Suitable for DIN rail mounting: Yes
- Number of poles: 1
- Position of connection for main current circuit: Front side
- Type of control element: Wing knob
- Degree of protection (IP): IP30
- With switched-off indicator: Yes
- Complete device with protection unit: Yes
- Dimensions (H x L x W): 85mm x 75mm x 45mm
- Weight: 0.5 kg
Key Features
- Thermal magnetic trip unit for overload and short-circuit protection
- Breaking capacity Icu 25 kA at 220/240 V~
- Rated current 15 A, single pole (1P)
- Conforms to IEC 60947-2 and NEMA standards
- Screw connection for main circuit
- Suitable for DIN rail (top hat rail) mounting
- With switched-off indicator
- Fixed thermal and magnetic release
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into the electrical system.
Applications
- Switching, control, isolation, and protection of low-voltage electrical lines
- Suitable for residential, commercial, and industrial electrical installations
- DIN rail mounting for electrical panels and switchboards
Standards & Compliance
- Complies with AS/NZS 60947-2 – Low-voltage switchgear and controlgear
Environmental Benefits
- Protects electrical circuits to prevent damage and reduce fire risk
- Enhances energy efficiency by preventing electrical faults
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Legrand MCCB DRX 125 Thermal Magnetic Circuit Breaker 15A 1P 25kA is available for immediate purchase, ideal for electrical protection in residential, commercial, and industrial switchboards.
