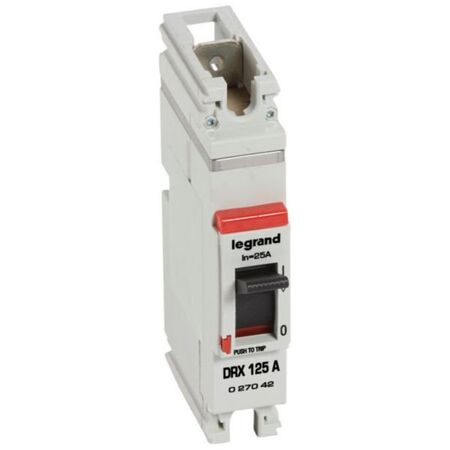

MCCB DRX 125 Thermal Magnetic Circuit Breaker | Icu 25 kA | 220/240 V~ | 1P 25 A | @Each of 1 | by Legrand
MCCB DRX 125 Thermal Magnetic Circuit Breaker offers reliable overload and short circuit protection with a breaking capacity of 25 kA at 220/240 V~. Designed for low-voltage electrical line switching and suitable for DIN rail mounting, this single-pole breaker is perfect for industrial and commercial applications, ensuring safety and compliance with IEC standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCCB DRX 125 Thermal Magnetic Circuit Breaker | Icu 25 kA | 220/240 V~ | 1P 25 A | @Each of 1 | by Legrand
Brand: Legrand
SKU: 027042
Alternatively Known As: Moulded Case Circuit Breaker, MCCB DRX 125, Thermal Magnetic Circuit Breaker, Legrand Circuit Breaker 25A
Technical Specifications
- Rated permanent current Iu: 25 A
- Rated voltage: 110-550 V
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz: 36 kA
- Overload release current setting: 25-25 A
- Adjustment range short-term delayed short-circuit release: 400-400 A
- Adjustment range undelayed short-circuit release: 400-400 A
- Device construction: Built-in fixed technique
- Integrated earth fault protection: No
- Type of electrical connection: Screw connection
- Suitable for DIN rail mounting: Yes
- Number of poles: 1
- Position of connection for main current circuit: Front side
- Type of control element: Wing knob
- Complete device with protection unit: Yes
- Motor drive integrated: No
- Degree of protection (IP): IP30
- Dimensions (H x L x W): 85mm x 75mm x 45mm
- Weight: 0.5 kg
Key Features
- Thermal magnetic trip unit for overload and short circuit protection
- Breaking capacity Icu 25 kA at 220/240 V~
- Rated current 25 A
- Single pole (1P) design
- Screw connection for main circuit
- Suitable for DIN rail (top hat rail) mounting
- With switched-off indicator
- Fixed thermal and magnetic protection
- Conforms to IEC 60947-2 and NEMA standards
- Supplied with M5 terminal for In ≤ 50 A
- Degree of protection IP30
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into the electrical system.
Applications
- Low-voltage electrical line switching, control, isolation, and protection
- Industrial and commercial electrical distribution panels
- Switchboards and power cabinets
Standards & Compliance
- Complies with AS/NZS 60947-2 – Low-voltage switchgear and controlgear – Circuit-breakers
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires
- Durable design reduces need for frequent replacements
- Supports energy-efficient electrical system protection
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand for specific warranty terms.
Available Now
The Legrand MCCB DRX 125 Thermal Magnetic Circuit Breaker 25A 1P 25kA is available for immediate purchase, ideal for use in switchboards and power cabinets for low-voltage electrical protection.
