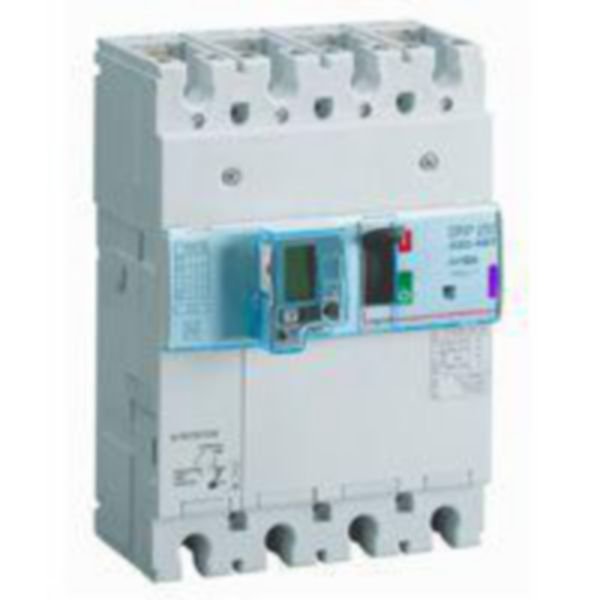

MCCB Electronic Circuit Breaker | Energy Metering & Earth Leakage Protection | 50 kA Breaking Capacity | 4P 160 A | @Each of 1 | by Legrand
MCCB electronic circuit breaker with energy metering and earth leakage protection is perfect for industrial and commercial electrical distribution. With a 50 kA breaking capacity and 4-pole configuration rated at 160 A, it ensures reliable performance and safety. Ideal for switchboards and power cabinets, this device features adjustable overload and short circuit protection, making it a smart choice for energy management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCCB Electronic Circuit Breaker | Energy Metering & Earth Leakage Protection | 50 kA Breaking Capacity | 4P 160 A | @Each of 1 | by Legrand
Brand: Legrand
SKU: 420487
Alternatively Known As: Legrand DPX3 250 MCCB, Electronic MCCB with Energy Metering, Legrand 4P 160A Circuit Breaker, Legrand Earth Leakage MCCB
Technical Specifications
- Rated permanent current: 160 A
- Rated voltage: 220-690 V
- Breaking capacity Icu at 400 V, 50 Hz: 50 kA
- Overload release current setting: 64-160 A
- Short-term delayed short-circuit release adjustment: 96-1600 A
- Undelayed short-circuit release adjustment: 96-1600 A
- Number of poles: 4
- Integrated earth fault protection with adjustable sensitivity (0.03 - 3 A)
- Degree of protection: IP30
- Screw connection for main circuit
- Mounting: DIN rail or plate
- Auxiliary contacts: 1 normally closed, 1 change-over
- Under voltage release included
- Motor drive optional
- Dimensions (H x L x W): 160mm x 90mm x 140mm
- Weight: 5.5 kg
Key Features
- Electronic release MCCB with adjustable overload and short circuit protection
- Integrated energy metering central unit with LCD display for currents, voltage, frequency, power, energy, and harmonics
- Earth leakage module with adjustable sensitivity and tripping times
- Breaking capacity of 50 kA at 400 V~
- 4-pole configuration with 160 A rated current
- Suitable for DIN rail or plate mounting in XL³ cabinets
- Equipped with screw connection and phase barriers for safety
- Includes auxiliary contacts and under voltage release
- IP30 degree of protection
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchboards.
Applications
- Industrial electrical distribution panels
- Commercial and residential low voltage electrical protection
- Switchboards and power cabinets requiring energy metering and earth leakage protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Integrated energy metering helps monitor and optimize energy consumption
- Electronic protection reduces electrical faults and energy waste
- Supports sustainable electrical system management
Warranty Information
Standard Legrand warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand DPX³ 250 MCCB electronic with energy metering and earth leakage protection is available for immediate purchase, ideal for industrial and commercial electrical distribution applications.
