MCCB Electronic Energy Metering E.L.C.B | 40A Rated Current | 25kA Breaking Capacity | 4-Pole Configuration | @Each of 1 | by Legrand
MCCB electronic energy metering E.L.C.B is designed for low voltage electrical line protection and control, featuring a 40A rated current and a breaking capacity of 25kA. Ideal for industrial and commercial applications, this electronic circuit breaker includes adjustable overload and short circuit protection settings, along with integrated earth fault protection for enhanced safety and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

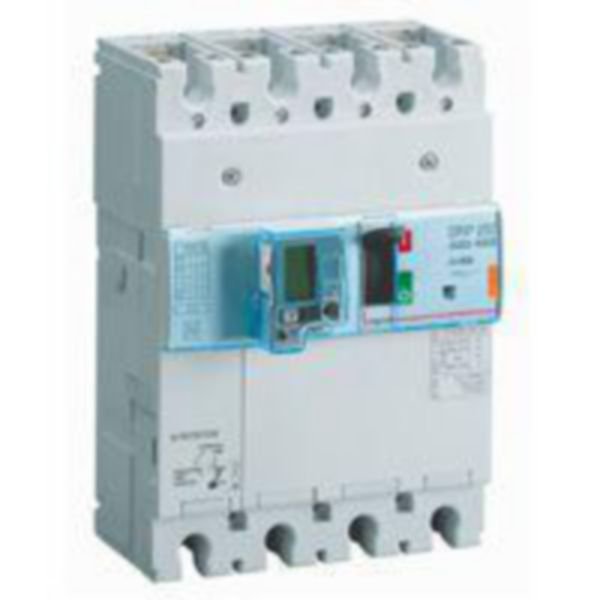

Product Name/Title: MCCB Electronic Energy Metering E.L.C.B | 40A Rated Current | 25kA Breaking Capacity | 4-Pole Configuration | @Each of 1 | by Legrand
Brand: Legrand
SKU: 420422
Alternatively Known As: Moulded Case Circuit Breaker, MCCB with Energy Metering, Electronic MCCB with ELCB, DPX3 250 MCCB, Legrand Circuit Breaker 40A 25kA
Technical Specifications
- Rated current (In): 40 A
- Rated voltage: 220-690 V
- Breaking capacity (Icu) at 400 V, 50 Hz: 25 kA
- Overload release current setting: 16-40 A
- Short-circuit release adjustment range: 24-400 A
- Number of poles: 4
- Degree of protection: IP30
- Connection type: Screw connection
- Integrated earth fault protection with adjustable sensitivity (0.03 - 3 A)
- Energy metering parameters: currents, voltage, frequency, power, energy, harmonics
- Mounting: DIN rail or plate in XL³ cabinets
- Dimensions (H x L x W): 140mm x 75mm x 90mm
- Weight: 3.5 kg
Key Features
- Electronic release MCCB with energy metering and earth leakage protection
- Adjustable overload and short circuit protection settings
- Integrated LCD screen for energy metering and earth leakage monitoring
- Breaking capacity of 25 kA at 400 V~
- 4-pole configuration with 40 A rated current
- Suitable for DIN rail or plate mounting in XL³ cabinets
- Equipped with screw connection and phase barriers for safety
- IP30 degree of protection
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper configuration of protection settings.
Applications
- Low voltage electrical line protection and control
- Industrial and commercial electrical distribution boards
- Switchboards and power cabinets requiring energy metering and earth leakage protection
Standards & Compliance
- Complies with AS/NZS 60947-2 – Low-voltage switchgear and controlgear - Circuit-breakers
Environmental Benefits
- Integrated energy metering helps optimize energy consumption and reduce waste
- Electronic protection reduces risk of electrical faults and fire hazards
Warranty Information
Standard manufacturer warranty of 2 years against defects in materials and workmanship.
Available Now
The Legrand DPX³ 250 MCCB Electronic Energy Metering E.L.C.B 4P 40A 25kA is available for immediate purchase, ideal for industrial and commercial electrical distribution applications.
