MCCB G Frame 70kA 3P 50A | Fixed Thermal Magnetic | High Breaking Capacity by NHP
MCCB G Frame with 70kA breaking capacity and fixed thermal magnetic protection—ideal for industrial power distribution. Built for reliability, with high performance in commercial electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

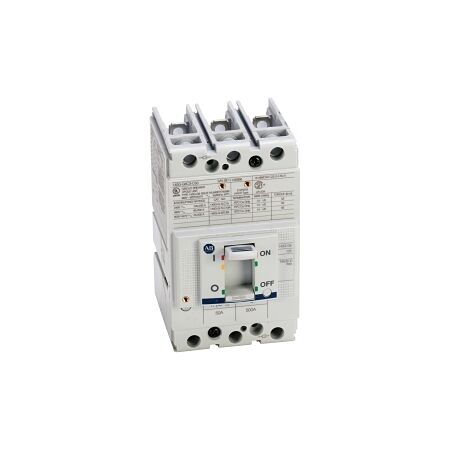

Product Name/Title: Allen-Bradley 140G MCCB G Frame 70kA 3P 50A Fixed Thermal Magnetic
Brand: NHP
SKU: 140GG6C3C50
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 50 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 35 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Fixed thermal, fixed magnetic
- Frame Size Rating: 160 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Suitable for Isolation: Yes
- Rated Short Circuit Breaking Capacity (ICU): 10 kA
- Rated Short Circuit Breaking Capacity (ICS): 5 kA
- Rated Impulse Withstand Voltage: 8 kV
- Reverse Connection of Supply Possible: Yes
- Electrical Life: 8000 cycles
- Power Loss: 11.1 W
- DIN Rail Mounting: Optional
- Mechanical Life: 25000 cycles
- Rated Surrounding Temperature: 40 °C
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40 to 80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 130mm x 101mm x 76.2mm
- Weight: 1.1 kg
Key Features
- Fixed thermal and magnetic trip unit for reliable protection.
- High breaking capacity of 70 kA at 415 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in commercial and industrial settings
- General: Suitable for various electrical installations requiring circuit protection
Environmental Benefits
- Designed for long service life, reducing the need for frequent replacements and waste.
Warranty Information
Standard warranty as per manufacturer’s policy.
Available Now
The Allen-Bradley 140G MCCB G Frame 70kA 3P 50A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
Non-Returnable & Non-Cancellable
