MCCB G Frame 70kA 3P 60A | Fixed Thermal Magnetic | High Breaking Capacity by NHP
MCCB G Frame with 70kA breaking capacity and fixed thermal magnetic trip unit—ideal for industrial motor control and commercial power distribution. Built for reliability, with high efficiency and reduced energy loss.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

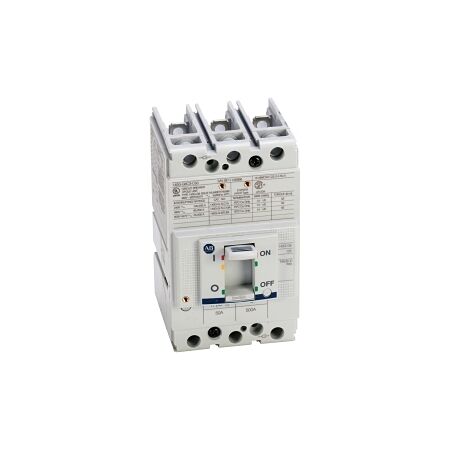

Product Name/Title: Allen-Bradley 140G MCCB G Frame 70kA 3P 60A Fixed Thermal Magnetic
Brand: NHP
SKU: 140GG6C3C60
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 60 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 35 kA
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 8000 cycles
- Mechanical Life: 25000 cycles
- Power Loss: 11.7 W
- Suitable for Isolation: Yes
- Reverse Connection of Supply Possible: Yes
- Dimensions (H x L x W): 130mm x 101mm x 76.2mm
- Weight: 1.1 kg
Key Features
- Fixed thermal and magnetic trip unit for reliable protection.
- High breaking capacity of 70 kA at 415 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and protection
- Commercial: Power distribution systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB G Frame 70kA 3P 60A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial power distribution systems.
