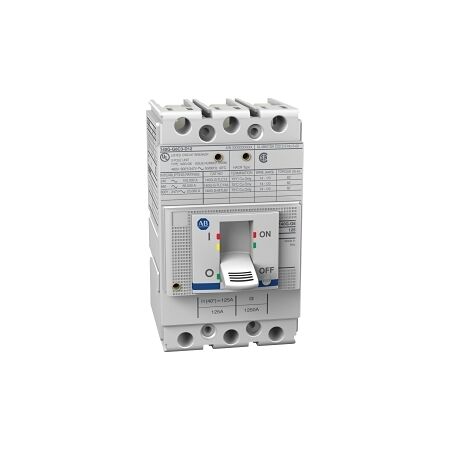

MCCB H Frame 100kA 3P 20A | Fixed Thermal Magnetic | High Breaking Capacity by NHP

BRAND: NHP
SKU: 140GH0C3C20
$856.20 List price: $1,136.90
+ −
30 Days Return Delivery Options
MCCB with 100kA breaking capacity and fixed thermal magnetic trip—ideal for industrial motor control and commercial electrical distribution. Built for reliable protection, with high efficiency to reduce energy loss.

Product Name/Title: Allen-Bradley 140G MCCB H Frame 100kA 3P 20A Fixed Thermal Magnetic

Brand: NHP

SKU: 140GH0C3C20

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications
  • Rated Current: 20 A
  • Number of Poles: 3
  • Max Rated Operation Voltage: 690 V
  • Rated Ultimate Short Circuit Breaking Capacity: 120 kA
  • Rated Service Short Circuit Breaking Capacity: 120 kA
  • Type of Protection: Thermal/magnetic release
  • Trip Curve: Fixed thermal, fixed magnetic
  • Frame Size Rating: 160 A
  • Rated Frequency: 50-60 Hz
  • Rated Insulation Voltage: 1000 V
  • Suitable for Isolation: Yes
  • Rated Short Circuit Breaking Capacity at 690 V AC: 18 kA
  • Rated Impulse Withstand Voltage: 8 kV
  • Electrical Life: 8000 cycles
  • Power Loss: 4.8 W
  • Mechanical Life: 25000 cycles
  • Rated Surrounding Temperature: -40 to 40 °C
  • Maximum Operating Temperature: 75 °C
  • Max Altitude Before Derating: 2000 m
  • Dimensions (H x L x W): 130mm x 116mm x 90mm
  • Weight: 1.2 kg
Key Features
  • Fixed thermal and magnetic trip unit for reliable protection.
  • High breaking capacity of 120 kA at 415 V.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Motor control and protection
  • Commercial: Electrical distribution systems
Standards & Compliance
  • Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
  • Designed for high efficiency, reducing energy loss during operation.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB H Frame 100kA 3P 20A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical distribution systems.
