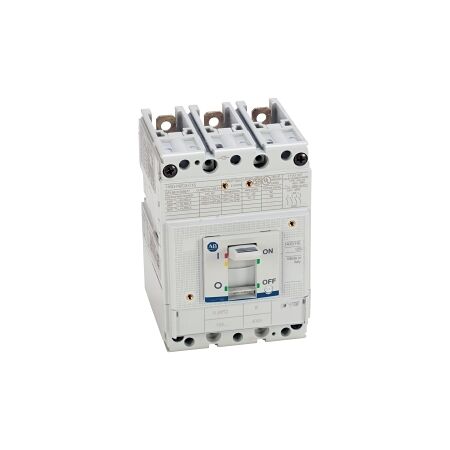

Allen-Bradley 140G MCCB H Frame 36kA 3P 32A Fixed Thermal Magnetic

MCCB H Frame 36kA 3P 32A | Fixed Thermal Magnetic | High Breaking Capacity by NHP

BRAND: NHP

SKU: 140GH2C3C32

$347.70 List price: $461.70

+ −

30 Days Return Delivery Options

MCCB H Frame with 36kA breaking capacity and fixed thermal magnetic protection—ideal for industrial motor protection and commercial electrical systems. Built for reliability, with high performance in various conditions.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB H Frame 36kA 3P 32A Fixed Thermal Magnetic

Brand: NHP

SKU: 140GH2C3C32

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 32 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 36 kA
Rated Service Short Circuit Breaking Capacity: 36 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Fixed thermal, fixed magnetic
Frame Size Rating: 160 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Suitable for Isolation: Yes
Rated Short Circuit Breaking Capacity (ICU): 10 kA at 690 V AC
Rated Impulse Withstand Voltage: 8 kV
Electrical Life: 8000 cycles
Power Loss: 7.8 W
Mechanical Life: 25000 cycles
Rated Surrounding Temperature: -40 to 75 °C
Dimensions (H x L x W): 130mm x 116mm x 90mm
Weight: 1.2 kg

Key Features

Fixed thermal and magnetic trip unit for reliable protection.
High breaking capacity of 36 kA at 415 V.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor protection, machinery, and equipment
Commercial: Electrical distribution systems

Standards & Compliance

Complies with relevant Australian standards for electrical safety.

Environmental Benefits

Designed for high performance and reliability in various environmental conditions.

Warranty Information

Standard warranty applies.

Available Now

The Allen-Bradley 140G MCCB H Frame 36kA 3P 32A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

140GH2C3C32-AU-140G-MCCB-H-Frame-Datasheet.pdf (140GH2C3C32-AU-140G-MCCB-H-Frame-Datasheet.pdf, 293 Kb) [Download]
