MCCB H Frame 36kA 3P 70A | Fixed Thermal Magnetic | Allen-Bradley by NHP
MCCB H Frame with 36kA short circuit capacity and 70A rated current—ideal for industrial and commercial power distribution. Built for reliability, with fixed thermal magnetic trip and robust design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

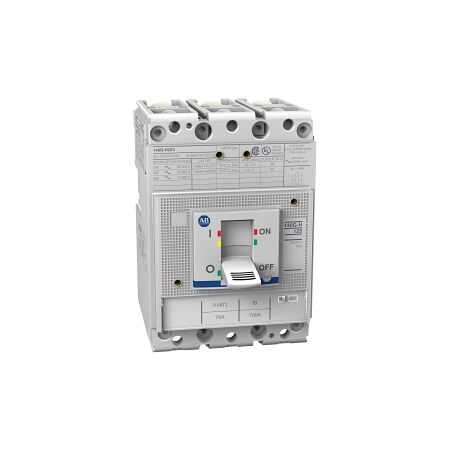

Product Name/Title: Allen-Bradley 140G MCCB H Frame 36kA 3P 70A Fixed Thermal Magnetic
Brand: NHP
SKU: 140GH2C3C70
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 70A
Technical Specifications
- Rated ultimate short circuit breaking capacity: 36 kA at 415 V 50 Hz
- Rated service short circuit breaking capacity: 36 kA at 415 V 50 Hz
- Rated insulation voltage: 1000 V
- Rated frequency: 50-60 Hz
- Rated impulse withstand voltage: 8 kV
- Electrical life: 8000 cycles
- Mechanical life: 25000 cycles
- Power loss: 13.3 W
- DIN rail mounting optional
- Dimensions (H x L x W): 130mm x 116mm x 90mm
- Weight: 1.2 kg
Key Features
- Rated current: 70 A
- 36 kA short circuit breaking capacity
- Thermal/magnetic release trip unit
- Fixed thermal and magnetic trip curve
- Suitable for isolation
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high performance and reliability in various environmental conditions.
Warranty Information
Standard warranty applies.
Available Now
The Allen-Bradley 140G MCCB H Frame 36kA 3P 70A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
Non-Returnable & Non-Cancellable
