MCCB H Frame 50kA 3P 160A | Electronic LSIG | Earth Fault Protection by NHP

BRAND: NHP
SKU: 140GH3I3D16
$789.80 List price: $1,048.70
+ −
30 Days Return Delivery Options
MCCB H Frame with 50kA breaking capacity and electronic LSIG—ideal for industrial and commercial electrical systems. Built for precise protection, with integrated earth fault safety and reverse connection capability.

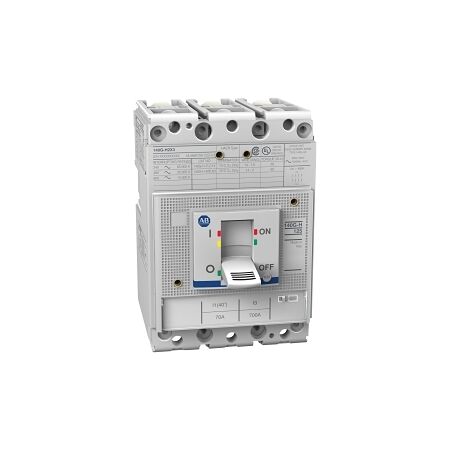

Product Name/Title: Allen-Bradley 140G MCCB H Frame 50kA 3P 160A Electronic LSIG

Brand: NHP

SKU: 140GH3I3D16

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 160A

Technical Specifications
  • Rated Current: 160 A
  • Number of Poles: 3
  • Max Rated Operation Voltage: 690 V
  • Rated Ultimate Short Circuit Breaking Capacity: 50 kA
  • Rated Service Short Circuit Breaking Capacity: 50 kA
  • Trip Curve: LSIG
  • Long Time Overload Protection Adjustment Range: 64-160 A
  • Instantaneous Protection Adjustment Range: 160-1600 A
  • Rated Insulation Voltage: 1000 V
  • Rated Short Circuit Breaking Capacity (ICU): 12 kA
  • Rated Impulse Withstand Voltage: 8 kV
  • Electrical Life: 8000 cycles
  • Mechanical Life: 25000 cycles
  • Power Loss: 25.4 W
  • Rated Surrounding Temperature: 40 °C
  • Maximum Operating Temperature: 75 °C
  • Storage Temperature: -40-80 °C
  • Max Altitude Before Derating: 2000 m
  • Dimensions (H x L x W): 130mm x 116mm x 90mm
  • Weight: 1.2 kg
Key Features
  • Electronic release trip unit for precise protection.
  • Integrated earth fault protection for enhanced safety.
  • Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety and compliance.
Applications
  • Industrial: Motor control and protection
  • Commercial: Electrical distribution systems
  • General: Power management in various electrical installations
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information

Standard warranty as per manufacturer’s policy.

Available Now

The Allen-Bradley 140G MCCB H Frame 50kA 3P 160A Electronic LSIG is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

140GH3I3D16-AU-140G-MCCB-H-Frame-Datasheet.pdf (140GH3I3D16-AU-140G-MCCB-H-Frame-Datasheet.pdf, 276 Kb) [Download]
