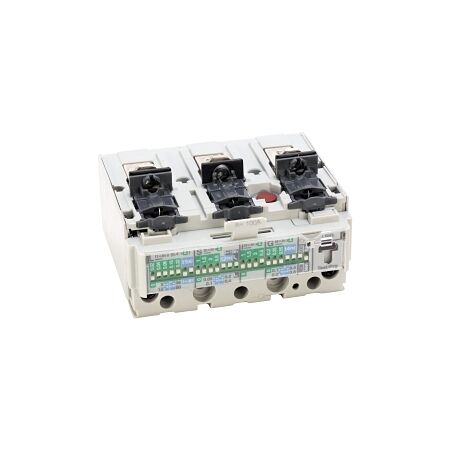

Allen-Bradley 140G MCCB H Frame Trip Unit 3P 100A Electronic LSIG

MCCB H Frame Trip Unit 3P 100A | Electronic LSIG | 160A Frame | Allen-Bradley by NHP

BRAND: NHP

SKU: 140GHTI3D10

$111.50 List price: $148.00

+ −

30 Days Return Delivery Options

MCCB H Frame trip unit with 3 poles and 100A rated current—ideal for industrial and commercial power distribution. Built for precise protection with electronic LSIG trip curve and 160A frame size.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB H Frame Trip Unit 3P 100A Electronic LSIG

Brand: NHP

SKU: 140GHTI3D10

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Electronic Trip Unit

Technical Specifications

Rated Current: 100 A
Number of Poles: 3
Type of Protection Trip Unit: Electronic release
Trip Curve: LSIG
Frame Size Rating: 160 A
Long Time Overload Protection Adjustment Range: 40-100 A
Instantaneous Protection Adjustment Range: 100-1000 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Short Time Protection Adjustment Range: 100-1000 A
Rated Impulse Withstand Voltage: 8 kV
Maximum Operating Temperature: 75 °C
Storage Temperature: -40-80 °C
Max Altitude Before Derating: 2000 m
Dimensions (H x L x W): 150mm x 200mm x 90mm
Weight: 2.5 kg

Key Features

Electronic release for precise trip settings.
LSIG trip curve for comprehensive protection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in commercial buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS 60898 for safety and performance standards.

Environmental Benefits

Designed for high efficiency and reliability in electrical protection.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB H Frame Trip Unit 3P 100A Electronic LSIG is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

140GHTI3D10-AU-140G-MCCB-Trip-Unit-Datasheet.pdf (140GHTI3D10-AU-140G-MCCB-Trip-Unit-Datasheet.pdf, 276 Kb) [Download]
