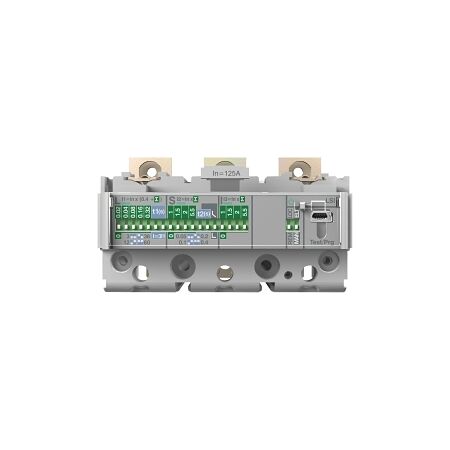

Allen-Bradley 140G MCCB H Frame Trip Unit 3P 120A Electronic LSI

MCCB H Frame Trip Unit 3P 120A | Electronic LSI | Compact Design by NHP

BRAND: NHP

SKU: 140GHTH3D12

$237.70 List price: $315.60

+ −

30 Days Return Delivery Options

MCCB H frame trip unit with 120A rated current and electronic LSI trip curve—ideal for industrial and commercial power distribution. Built for precise protection, with compact design for easy integration.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB H Frame Trip Unit 3P 120A Electronic LSI

Brand: NHP

SKU: 140GHTH3D12

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Electronic Trip Unit

Technical Specifications

Rated Current: 120 A
Number of Poles: 3
Type of Protection Trip Unit: Electronic release
Trip Curve: LSI
Frame Size Rating: 160 A
Long Time Overload Protection Adjustment Range: 40-100 A
Instantaneous Protection Adjustment Range: 125-1250 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage Ui: 1000 V
Short Time Protection Adjustment Range: 125-1250 A
Rated Impulse Withstand Voltage Uimp: 8 kV
Maximum Operating Temperature: 75 °C
Storage Temperature: -40-80 °C
Max Altitude Before Derating: 2000 m
Dimensions (H x L x W): 150mm x 120mm x 90mm
Weight: 1.5 kg

Key Features

Electronic release for precise trip settings.
LSI trip curve for enhanced protection.
Rated current of 120 A with 3 poles.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in commercial buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS 60898 for safety and performance standards.

Environmental Benefits

Designed for high performance in various environmental conditions.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB H Frame Trip Unit 3P 120A Electronic LSI is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

140GHTH3D12-AU-140G-MCCB-Trip-Unit-Datasheet.pdf (140GHTH3D12-AU-140G-MCCB-Trip-Unit-Datasheet.pdf, 224 Kb) [Download]
