MCCB H Frame Trip Unit 4P 120A | Electronic LSI | 160A Frame | Allen-Bradley by NHP
MCCB H frame trip unit with 120A rated current and electronic LSI protection—ideal for industrial and commercial power distribution. Built for precise trip settings, with enhanced overload and short circuit protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

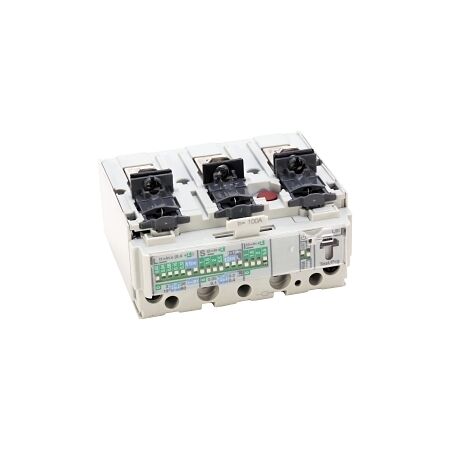

Product Name/Title: Allen-Bradley 140G MCCB H Frame Trip Unit 4P 120A Electronic LSI
Brand: NHP
SKU: 140GHTH4D12
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 120A
Technical Specifications
- Rated Current: 120 A
- Number of Poles: 4
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Frame Size Rating: 160 A
- Long Time Overload Protection Adjustment Range: 72-120 A
- Instantaneous Protection Adjustment Range: 125-1250 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Short Time Protection Adjustment Range: 125-1250 A
- Rated Impulse Withstand Voltage: 8 kV
- Rated Surrounding Temperature Without Derating: 40 °C
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40-80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 200mm x 150mm x 120mm
- Weight: 2.5 kg
Key Features
- Electronic release for precise trip settings.
- LSI trip curve for enhanced protection against overloads and short circuits.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Designed to operate efficiently in a wide range of temperatures, reducing energy waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB H Frame Trip Unit 4P 120A Electronic LSI is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
Non-Returnable & Non-Cancellable
