Home/Electrical/Switchgear/Circuit Breakers/Moulded Case Circuit Breaker (MCCB)/MCCB J Frame 250A 4P | 25kA Breaking Capacity | 690V Rated by NHP

Trade Discount 25%

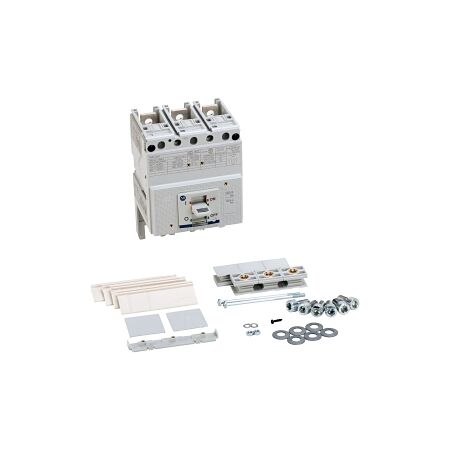

Allen-Bradley 140G MCCB J Frame Less Trip Unit 25kA 4P

MCCB J Frame 250A 4P | 25kA Breaking Capacity | 690V Rated by NHP

BRAND: NHP

SKU: 140GJ2X4

$518.10 List price: $688.00

+ −

30 Days Return Delivery Options

MCCB J Frame with 250A rated current and 4 poles—ideal for industrial and commercial power distribution. Built for high breaking capacity of 25kA at 415V, ensuring reliable circuit protection.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB J Frame Less Trip Unit 25kA 4P

Brand: NHP

SKU: 140GJ2X4

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 250A

Technical Specifications

Rated current: 250 A
Number of poles: 4
Max rated operation voltage: 690 V
Rated ultimate short circuit breaking capacity: 25 kA at 415 V
Rated service short circuit breaking capacity: 36 kA at 415 V
Rated frequency: 50-60 Hz
Rated insulation voltage: 1000 V
Rated short circuit breaking capacity: 10 kA at 690 V
Rated impulse withstand voltage: 8 kV
Electrical life: 8000 cycles
Mechanical life: 25000 cycles
Max operating temperature: 75 °C
Storage temperature: -40 to 80 °C
Max altitude before derating: 2000 m
Dimensions (H x L x W): 200mm x 117mm x 140mm
Weight: 5 kg

Key Features

Rated current: 250 A
4 poles for versatile applications
High breaking capacity of 25 kA at 415 V

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in large buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS 60898 for safety and performance standards.

Environmental Benefits

Designed for high efficiency and reliability in electrical systems.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB J Frame Less Trip Unit 25kA 4P is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

140GJ2X4-AU-140G-MCCB-J-Frame-Datasheet.pdf (140GJ2X4-AU-140G-MCCB-J-Frame-Datasheet.pdf, 258 Kb) [Download]
