MCCB J Frame 36kA 3P 100A | Electronic LSI | Compact Design by NHP
MCCB J Frame with 36kA short circuit capacity and electronic LSI—ideal for industrial motor control and commercial electrical distribution. Built for precise protection, with compact design for easy integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

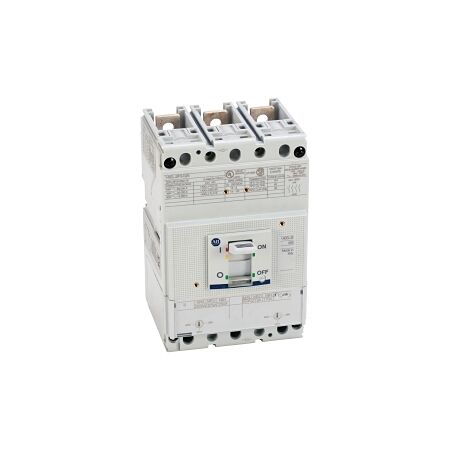

Product Name/Title: Allen-Bradley 140G MCCB J Frame 36kA 3P 100A Electronic LSI
Brand: NHP
SKU: 140GJ2H3D10
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Electronic Circuit Breaker
Technical Specifications
- Rated Current: 100 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 36 kA
- Rated Service Short Circuit Breaking Capacity: 36 kA
- Trip Curve: LSI
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 8000 cycles
- Mechanical Life: 25000 cycles
- Power Loss: 10.5 W
- Dimensions (H x L x W): 160mm x 117mm x 105mm
- Weight: 2.5 kg
Key Features
- Electronic release trip unit for precise protection.
- 36 kA short circuit breaking capacity at 415 V.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and protection
- Commercial: Electrical distribution systems
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high performance and reliability in various environmental conditions.
Warranty Information
Standard warranty applies.
Available Now
The Allen-Bradley 140G MCCB J Frame 36kA 3P 100A Electronic LSI is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
