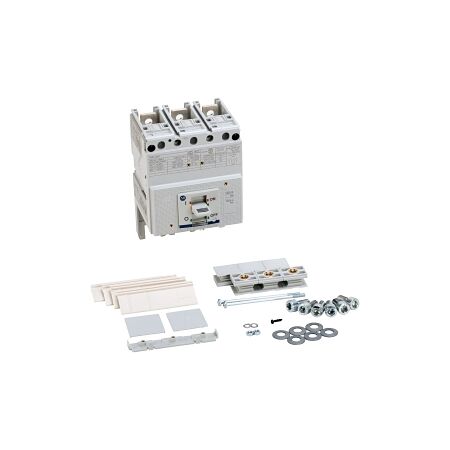

Allen-Bradley 140G MCCB J Frame 50kA 3P 100A Adjustable Thermal Magnetic

MCCB J Frame 50kA 3P 100A | Adjustable Thermal Magnetic | Compact Design by NHP

BRAND: NHP

SKU: 140GJ3F3D10

$1,425.80 List price: $1,893.30

+ −

30 Days Return Delivery Options

MCCB with 50kA breaking capacity and adjustable thermal magnetic trip—ideal for industrial and commercial electrical systems. Built for customized protection, with compact design for efficient installation.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB J Frame 50kA 3P 100A Adjustable Thermal Magnetic

Brand: NHP

SKU: 140GJ3F3D10

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 100 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 50 kA
Rated Service Short Circuit Breaking Capacity: 50 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Rated Insulation Voltage: 1000 V
Rated Impulse Withstand Voltage: 8 kV
Electrical Life: 8000 cycles
Mechanical Life: 25000 cycles
Power Loss: 18.6 W
Suitable for Isolation: Yes
Dimensions (H x L x W): 160mm x 117mm x 105mm
Weight: 2.5 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High short-circuit breaking capacity of 50 kA.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor control and protection
Commercial: Electrical distribution systems

Standards & Compliance

Complies with AS/NZS 60950 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving system reliability.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB J Frame 50kA 3P 100A Adjustable Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical distribution systems.

Non-Returnable & Non-Cancellable

140GJ3F3D10-AU-140G-MCCB-J-Frame-Datasheet.pdf (140GJ3F3D10-AU-140G-MCCB-J-Frame-Datasheet.pdf, 514 Kb) [Download]
