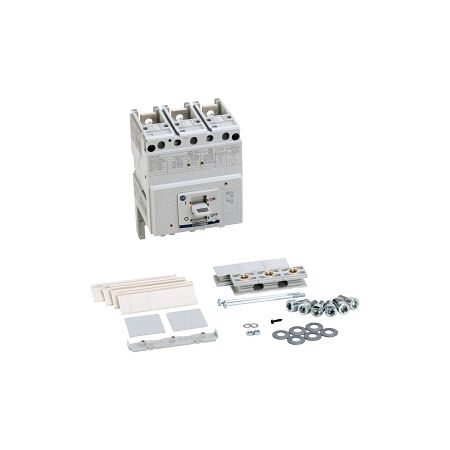

Allen-Bradley 140G MCCB J Frame 50kA 3P 100A Electronic LSI

MCCB J Frame 50kA 3P 100A | Electronic LSI | High Breaking Capacity by NHP

BRAND: NHP

SKU: 140GJ3H3D10

$1,858.20 List price: $2,467.40

+ −

30 Days Return Delivery Options

MCCB J Frame with 50kA breaking capacity and electronic LSI—ideal for industrial motor control and commercial electrical distribution. Built for precise protection, with high efficiency and reliability.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB J Frame 50kA 3P 100A Electronic LSI

Brand: NHP

SKU: 140GJ3H3D10

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Electronic Circuit Breaker

Technical Specifications

Rated Current: 100 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 50 kA
Rated Service Short Circuit Breaking Capacity: 50 kA
Type of Protection Trip Unit: Electronic release
Trip Curve: LSI
Frame Size Rating: 250 A
Long Time Overload Protection Adjustment Range: 40-100 A
Instantaneous Protection Adjustment Range: 100-1000 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Rated Short Circuit Breaking Capacity at 690 V AC: 12 kA
Short Time Protection Adjustment Range: 100-1000 A
Rated Impulse Withstand Voltage: 8 kV
Electrical Life at Un in Service Cycles: 8000 cycles
Power Loss: 10.5 W
Mechanical Life Service Cycles: 25000 cycles
Dimensions (H x L x W): 160mm x 117mm x 105mm
Weight: 2.5 kg

Key Features

Electronic release trip unit for precise protection.
High breaking capacity of 50 kA at 415 V.
Suitable for isolation and reverse connection of supply.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor control and protection
Commercial: Electrical distribution systems

Standards & Compliance

Complies with relevant Australian standards for electrical safety.

Environmental Benefits

Designed for high efficiency and reliability in electrical systems.

Warranty Information

Standard warranty applies.

Available Now

The Allen-Bradley 140G MCCB J Frame 50kA 3P 100A Electronic LSI is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

140GJ3H3D10-AU-140G-MCCB-J-Frame-Datasheet.pdf (140GJ3H3D10-AU-140G-MCCB-J-Frame-Datasheet.pdf, 267 Kb) [Download]
