MCCB J Frame 50kA 3P 30A | Fixed Thermal Magnetic | High Breaking Capacity by NHP
MCCB J Frame with 50kA breaking capacity and fixed thermal magnetic protection—ideal for industrial motor protection and commercial power distribution. Built for reliability, with high efficiency and reduced energy loss.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

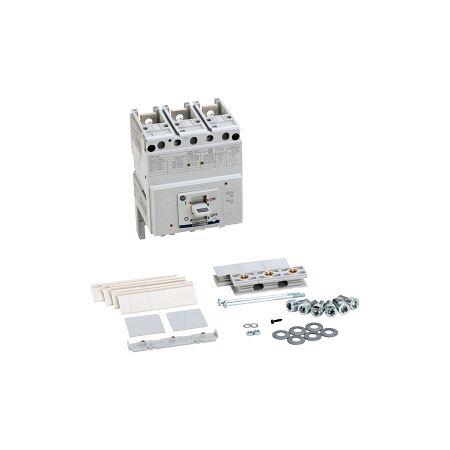

Product Name/Title: Allen-Bradley 140G MCCB J Frame 50kA 3P 30A Fixed Thermal Magnetic
Brand: NHP
SKU: 140GJ3C3C30
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated Current: 30 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 50 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Fixed thermal, fixed magnetic
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Rated Short Circuit Breaking Capacity (ICU): 12 kA at 690 V AC
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 8000 cycles
- Mechanical Life: 25000 cycles
- Rated Surrounding Temperature: -40 to 40 °C
- Maximum Operating Temperature: 75 °C
- Dimensions (H x L x W): 160mm x 117mm x 105mm
- Weight: 2.5 kg
Key Features
- Fixed thermal and magnetic trip unit for reliable protection.
- High breaking capacity of 50 kA at 415 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection, power distribution
- Commercial: Electrical panels, machinery
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB J Frame 50kA 3P 30A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial applications.
Non-Returnable & Non-Cancellable
