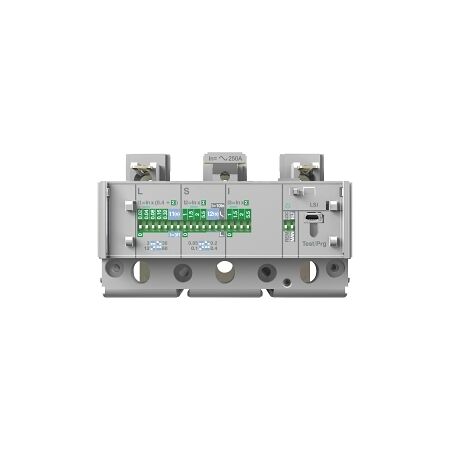

Allen-Bradley 140G MCCB J Frame Trip Unit 3P 150A Electronic LSI

MCCB J Frame Trip Unit 3P 150A | Electronic LSI | Adjustable Protection by NHP

BRAND: NHP

SKU: 140GJTH3D15

$928.00 List price: $1,232.30

+ −

30 Days Return Delivery Options

MCCB J Frame trip unit with 3 poles and 150A rated current—ideal for industrial motor control and commercial electrical distribution. Built for precise protection, with electronic release and adjustable overload settings.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB J Frame Trip Unit 3P 150A Electronic LSI

Brand: NHP

SKU: 140GJTH3D15

Alternatively Known As: MCCB, Molded Case Circuit Breaker, 140G Trip Unit

Technical Specifications

Rated Current: 150 A
Number of Poles: 3
Type of Protection: Electronic release
Trip Curve: LSI
Frame Size Rating: 250 A
Long Time Overload Protection Adjustment Range: 60-150 A
Instantaneous Protection Adjustment Range: 150-1500 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Short Time Protection Adjustment Range: 150-1500 A
Rated Impulse Withstand Voltage: 8 kV
Maximum Operating Temperature: 75 °C
Storage Temperature: -40-80 °C
Max Altitude Before Derating: 2000 m
Dimensions (H x L x W): 150mm x 200mm x 105mm
Weight: 2.5 kg

Key Features

Electronic release trip unit for precise protection.
Adjustable long-time overload and instantaneous protection settings.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor control and protection in manufacturing facilities
Commercial: Electrical distribution in commercial buildings

Standards & Compliance

Complies with AS/NZS 60950 for safety of electrical equipment.

Environmental Benefits

Designed to operate efficiently, reducing energy waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB J Frame Trip Unit 3P 150A Electronic LSI is available now for immediate purchase. Ideal for industrial and commercial applications.

Non-Returnable & Non-Cancellable

140GJTH3D15-AU-140G-MCCB-Trip-Unit-Datasheet.pdf (140GJTH3D15-AU-140G-MCCB-Trip-Unit-Datasheet.pdf, 217 Kb) [Download]
