MCCB J Frame Trip Unit 4P 100A | Electronic LSI | 250A Frame | NHP by Allen-Bradley
MCCB J Frame trip unit with 4 poles and 100A rated current—ideal for industrial and commercial power distribution. Built for precise protection with electronic LSI trip curve and 250A frame size.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

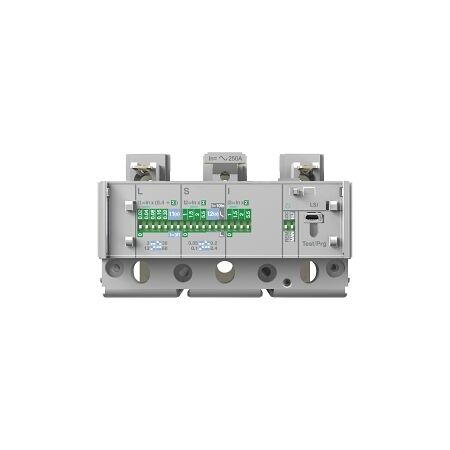

Product Name/Title: Allen-Bradley 140G MCCB J Frame Trip Unit 4P 100A Electronic LSI
Brand: NHP
SKU: 140GJTH4D10
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 100A
Technical Specifications
- Rated Current: 100 A
- Number of Poles: 4
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Frame Size Rating: 250 A
- Long Time Overload Protection Adjustment Range: 40-100 A
- Instantaneous Protection Adjustment Range: 100-1000 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage Ui: 1000 V
- Short Time Protection Adjustment Range: 100-1000 A
- Rated Impulse Withstand Voltage Uimp: 8 kV
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40-80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 200mm x 100mm x 140mm
- Weight: 2.5 kg
Key Features
- Electronic release for precise trip settings.
- LSI trip curve for enhanced protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss in electrical systems.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB J Frame Trip Unit 4P 100A Electronic LSI is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
Non-Returnable & Non-Cancellable
