MCCB J Frame Trip Unit 4P 150A | Electronic LSI | Adjustable Protection by NHP
MCCB J Frame trip unit with 4 poles and 150A rated current—ideal for industrial and commercial power distribution. Built for precise circuit protection, with electronic LSI and adjustable overload settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

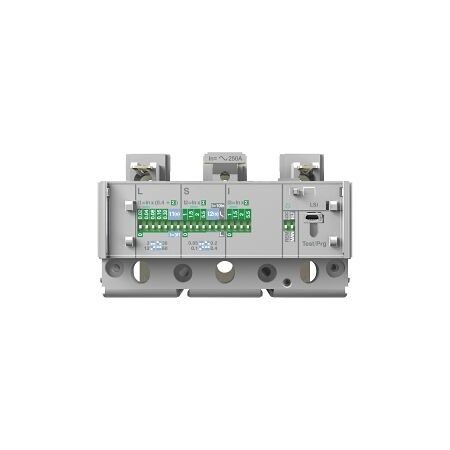

Product Name/Title: Allen-Bradley 140G MCCB J Frame Trip Unit 4P 150A Electronic LSI
Brand: NHP
SKU: 140GJTH4D15
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 150A
Technical Specifications
- Rated Current: 150 A
- Number of Poles: 4
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Frame Size Rating: 250 A
- Long Time Overload Protection Adjustment Range: 60-150 A
- Instantaneous Protection Adjustment Range: 150-1500 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Short Time Protection Adjustment Range: 150-1500 A
- Rated Impulse Withstand Voltage: 8 kV
- Rated Surrounding Temperature Without Derating: 40 °C
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40-80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 200mm x 200mm x 140mm
- Weight: 5 kg
Key Features
- Electronic release for precise trip settings.
- Adjustable long time overload protection from 60-150 A.
- Instantaneous protection adjustment range from 150-1500 A.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide range of temperatures, reducing energy waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB J Frame Trip Unit 4P 150A Electronic LSI is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
