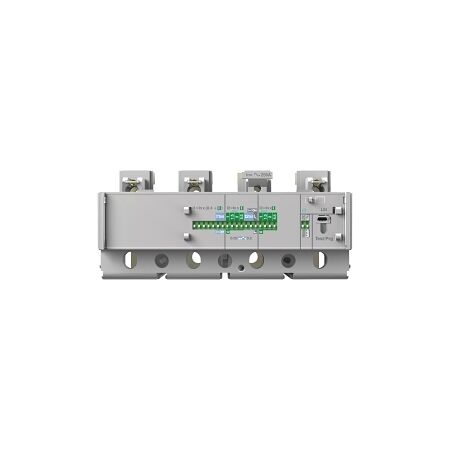

Allen-Bradley 140G MCCB J Frame Trip Unit 4P 250A Electronic LSI

MCCB J Frame Trip Unit 4P 250A | Electronic LSI | Adjustable Protection by NHP

BRAND: NHP

SKU: 140GJTH4D25

$819.30 List price: $1,087.90

+ −

30 Days Return Delivery Options

MCCB J Frame trip unit with 250A rated current and electronic LSI protection—ideal for industrial and commercial power distribution. Built for precise trip settings, with adjustable overload and instantaneous protection.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB J Frame Trip Unit 4P 250A Electronic LSI

Brand: NHP

SKU: 140GJTH4D25

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Electronic Trip Unit

Technical Specifications

Rated Current: 250 A
Number of Poles: 4
Type of Protection Trip Unit: Electronic release
Trip Curve: LSI
Frame Size Rating: 250 A
Long Time Overload Protection Adjustment Range: 100-250 A
Instantaneous Protection Adjustment Range: 250-2500 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Short Time Protection Adjustment Range: 250-2500 A
Rated Impulse Withstand Voltage: 8 kV
Maximum Operating Temperature: 75 °C
Storage Temperature: -40-80 °C
Max Altitude Before Derating: 2000 m
Dimensions (H x L x W): 200mm x 200mm x 140mm
Weight: 5 kg

Key Features

Electronic release for precise trip settings.
Adjustable long time overload protection from 100-250 A.
Instantaneous protection adjustment range from 250-2500 A.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in manufacturing facilities
Commercial: Electrical systems in commercial buildings
General: Any application requiring reliable circuit protection

Standards & Compliance

Complies with AS/NZS 60898 for safety and performance standards.

Environmental Benefits

Designed for high performance in various environmental conditions.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB J Frame Trip Unit 4P 250A Electronic LSI is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

140GJTH4D25-AU-140G-MCCB-Trip-Unit-Datasheet.pdf (140GJTH4D25-AU-140G-MCCB-Trip-Unit-Datasheet.pdf, 190 Kb) [Download]
