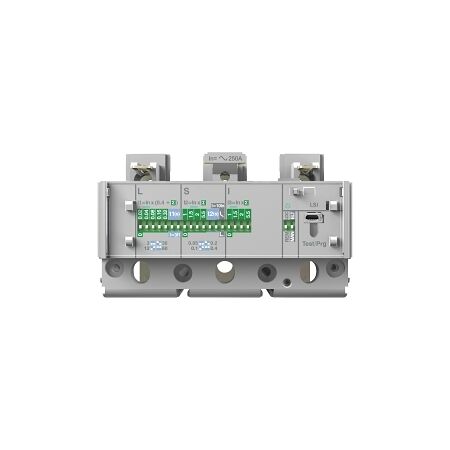

Allen-Bradley 140G MCCB J Frame Trip Unit 4P 40A Electronic LSI

MCCB J Frame Trip Unit 4P 40A | Electronic LSI | 250A Frame | NHP

BRAND: NHP

SKU: 140GJTH4C40

$819.30 List price: $1,087.90

+ −

30 Days Return Delivery Options

MCCB J Frame trip unit with 4 poles and 40A rated current—ideal for industrial motor control and commercial electrical distribution. Built for precise protection with electronic LSI trip curve and high efficiency.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB J Frame Trip Unit 4P 40A Electronic LSI

Brand: NHP

SKU: 140GJTH4C40

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 40A

Technical Specifications

Rated Current: 40 A
Number of Poles: 4
Type of Protection Trip Unit: Electronic release
Trip Curve: LSI
Frame Size Rating: 250 A
Long Time Overload Protection Adjustment Range: 16-40 A
Instantaneous Protection Adjustment Range: 40-400 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage Ui: 1000 V
Short Time Protection Adjustment Range: 40-400 A
Rated Impulse Withstand Voltage Uimp: 8 kV
Maximum Operating Temperature: 75 °C
Storage Temperature: -40-80 °C
Max Altitude Before Derating: 2000 m
Dimensions (H x L x W): 200mm x 100mm x 140mm
Weight: 2.5 kg

Key Features

Electronic release for precise trip settings.
LSI trip curve for enhanced protection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor control and protection
Commercial: Electrical distribution systems
General: Any application requiring reliable circuit protection

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation safety.

Environmental Benefits

Designed for high efficiency, reducing energy loss in electrical systems.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB J Frame Trip Unit 4P 40A Electronic LSI is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

140GJTH4C40-AU-140G-MCCB-Trip-Unit-Datasheet.pdf (140GJTH4C40-AU-140G-MCCB-Trip-Unit-Datasheet.pdf, 217 Kb) [Download]
