MCCB Lockout Device Reinforced Nylon 250A Grey Cirlock

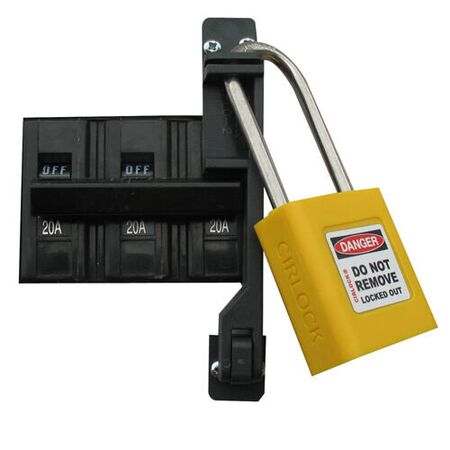

Cirlock MCCB Lockout Device Reinforced Nylon Grey features 1 x 7mm padlock holes. Permanently mounted lockout device for MCCBs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Reinforced Nylon
- Padlock Holes: 1 x 7mm
- Colour Options: Grey (standard), Yellow
- Suitable for MCCBs up to approximately 250 Amp
- Includes 3 arms for best fitting on circuit breaker
- Permanently mounted with included screws
- Dimensions (H x L x W): 50mm x 100mm x 100mm
- Weight: 0.1 kg
Key Features
- Permanently mounted lockout device for MCCBs
- Includes 3 arms to fit best on the circuit breaker
- Made from reinforced nylon for non-conductivity and durability
- Single 7mm padlock hole for secure locking
- Available in grey (standard) or yellow
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with lockout/tagout procedures to ensure compliance with safety standards.
Applications
- Lockout of Moulded Case Circuit Breakers (MCCB) up to approximately 250 Amp
- Industrial and commercial electrical safety procedures
- Maintenance and repair lockout/tagout compliance
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable nylon construction reduces need for frequent replacements
- Non-conductive material enhances safety, reducing risk of electrical accidents
Warranty Information
Standard manufacturer warranty applies; please refer to Cirlock for specific terms.
Available Now
The Cirlock Individual MCCB Lockout Devices are available now for immediate purchase. Ideal for industrial and commercial electrical safety lockout applications.
