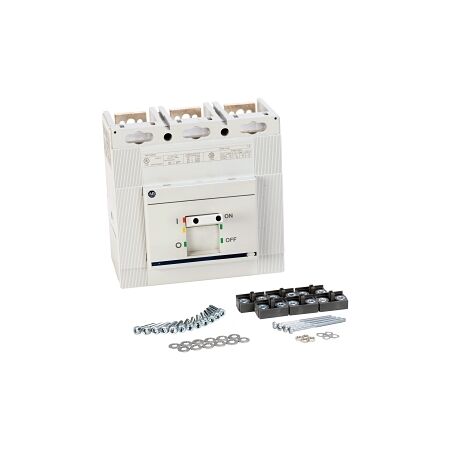

Allen-Bradley 140G MCCB M Frame Less Trip Unit 50kA 4P

MCCB M Frame 800A | 50kA Breaking Capacity | 4 Poles | Allen-Bradley by NHP

BRAND: NHP

SKU: 140GM5X4

$2,561.20 List price: $3,400.90

+ −

30 Days Return Delivery Options

MCCB M Frame with 800A rated current and 50kA breaking capacity—ideal for industrial and commercial power distribution. Built for high efficiency and reliability, with four poles for versatile applications.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB M Frame Less Trip Unit 50kA 4P

Brand: NHP

SKU: 140GM5X4

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, 140G MCCB

Technical Specifications

Rated current: 800 A
Number of poles: 4
Max rated operation voltage: 690 V
Rated ultimate short circuit breaking capacity: 50 kA
Rated service short circuit breaking capacity: 50 kA
Rated frequency: 50-60 Hz
Rated insulation voltage: 1000 V
Rated short circuit breaking capacity at 690 V: 22 kA
Rated impulse withstand voltage: 8 kV
Electrical life: 7000 cycles
Mechanical life: 20000 cycles
Max operating temperature: 75 °C
Storage temperature: -40 to 80 °C
Max altitude before derating: 2000 m
Dimensions (H x L x W): 159mm x 103.5mm x 280mm
Weight: 10 kg

Key Features

Rated current: 800 A
Four poles for versatile applications
High breaking capacity of 50 kA at 415 V

Professional Installation Requirements

Professional installation by a qualified electrician is required for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in large buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS 60947 for safety and performance standards.

Environmental Benefits

Designed for high efficiency and reliability in electrical systems.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB M Frame Less Trip Unit 50kA 4P is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

140GM5X4-AU-140G-MCCB-M-Frame-Datasheet.pdf (140GM5X4-AU-140G-MCCB-M-Frame-Datasheet.pdf, 273 Kb) [Download]
