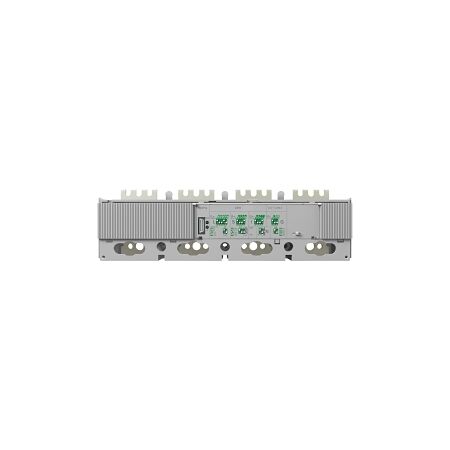

Allen-Bradley 140G MCCB M Frame Trip Unit 4P 800A Electronic LSIG

MCCB M Frame Trip Unit 4P 800A | Electronic LSIG | High Efficiency by NHP

BRAND: NHP

SKU: 140GMTI4D80

$4,517.20 List price: $5,998.20

+ −

30 Days Return Delivery Options

MCCB M Frame trip unit with 800A rated current and electronic LSIG protection—ideal for industrial and commercial power distribution. Built for precise trip settings, with high efficiency to reduce energy loss.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB M Frame Trip Unit 4P 800A Electronic LSIG

Brand: NHP

SKU: 140GMTI4D80

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 800A

Technical Specifications

Rated Current: 800 A
Number of Poles: 4
Type of Protection: Electronic release
Trip Curve: LSIG
Long Time Overload Protection Adjustment: 320-800 A
Instantaneous Protection Adjustment: 1200-8400 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Short Time Protection Adjustment: 480-8000 A
Rated Impulse Withstand Voltage: 8 kV
Maximum Operating Temperature: 75 °C
Storage Temperature: -40-80 °C
Max Altitude Before Derating: 2000 m
Dimensions (H x L x W): 200mm x 300mm x 280mm
Weight: 10 kg

Key Features

Electronic release for precise trip settings.
LSIG trip curve for comprehensive protection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in manufacturing facilities
Commercial: Electrical systems in commercial buildings
General: Any application requiring reliable circuit protection

Standards & Compliance

Complies with AS/NZS 3000 for electrical installations.

Environmental Benefits

Designed for high efficiency, reducing energy loss in electrical systems.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB M Frame Trip Unit 4P 800A Electronic LSIG is available now for immediate purchase. Ideal for industrial and commercial applications.

Non-Returnable & Non-Cancellable

140GMTI4D80-AU-140G-MCCB-Trip-Unit-Datasheet.pdf (140GMTI4D80-AU-140G-MCCB-Trip-Unit-Datasheet.pdf, 182 Kb) [Download]
