MCCB N Frame 70kA 3P 1200A | Electronic LSI | High Breaking Capacity by NHP
MCCB N Frame with 70kA breaking capacity and electronic LSI—ideal for industrial and commercial power distribution. Built for precise protection, with high efficiency and energy loss reduction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

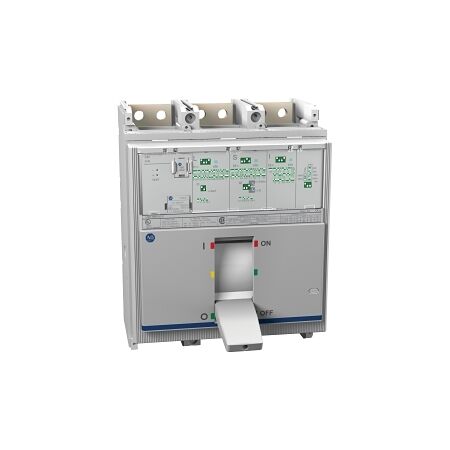

Product Name/Title: Allen-Bradley 140G MCCB N Frame 70KkA 3P 1200A Electronic LSI
Brand: NHP
SKU: 140GN6H3E12
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, 140G MCCB
Technical Specifications
- Rated Current: 1200 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 70 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Long Time Overload Protection Adjustment Range: 480-1200 A
- Instantaneous Protection Adjustment Range: 1800-14400 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Rated Short Circuit Breaking Capacity (ICU): 42 kA
- Rated Short Circuit Breaking Capacity (ICS): 31.5 kA
- Short Time Protection Adjustment Range: 720-12000 A
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 2000 cycles
- Mechanical Life: 10000 cycles
- Power Loss: 252 W
- Rated Surrounding Temperature: 40 °C
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40-80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 268mm x 225mm x 210mm
- Weight: 9.7 kg
Key Features
- Electronic release for precise trip settings.
- High breaking capacity of 70 kA for reliable protection.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in large buildings and infrastructure
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information
Standard warranty as per manufacturer’s policy.
Available Now
The Allen-Bradley 140G MCCB N Frame 70kA 3P 1200A Electronic LSI is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
