MCCB N Frame 70kA 4P 1200A | Electronic LSI | High Breaking Capacity by NHP
MCCB N Frame with 70kA breaking capacity and electronic LSI—ideal for industrial power distribution. Built for precise protection, with high efficiency and energy loss reduction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

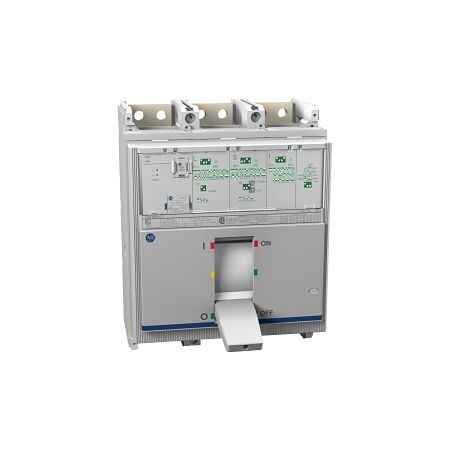

Product Name/Title: Allen-Bradley 140G MCCB N Frame 70kA 4P 1200A Electronic LSI
Brand: NHP
SKU: 140GN6H4E12
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 1200A
Technical Specifications
- Rated Current: 1200 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 70 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Long Time Overload Protection Adjustment Range: 480-1200 A
- Instantaneous Protection Adjustment Range: 1800-14400 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Rated Short Circuit Breaking Capacity (ICU): 42 kA
- Rated Short Circuit Breaking Capacity (ICS): 31.5 kA
- Short Time Protection Adjustment Range: 720-12000 A
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 2000 cycles
- Mechanical Life: 10000 cycles
- Power Loss: 336 W
- Rated Surrounding Temperature: 40 °C
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40-80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 268mm x 225mm x 280mm
- Weight: 12.5 kg
Key Features
- Electronic release trip unit for precise protection.
- High breaking capacity of 70 kA for enhanced safety.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in commercial and industrial settings.
- General: Suitable for various electrical installations requiring reliable circuit protection.
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving overall system performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB N Frame 70kA 4P 1200A Electronic LSI is available now for immediate purchase. Ideal for industrial applications requiring reliable circuit protection.
