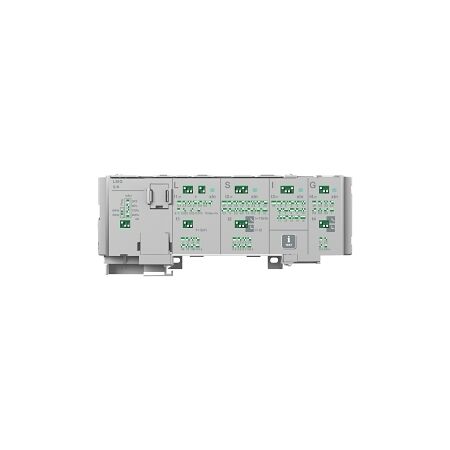

Allen-Bradley 140G MCCB N Frame Trip Unit 3P 1200A Electronic LSI

MCCB N Frame Trip Unit 3P 1200A | Electronic LSI | High Efficiency by NHP

BRAND: NHP

SKU: 140GNTHE12

$8,192.90 List price: $10,879.10

+ −

30 Days Return Delivery Options

MCCB N Frame trip unit with 1200A rated current and electronic LSI protection—ideal for industrial and commercial power distribution. Built for precise circuit protection, with high efficiency and reliability.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB N Frame Trip Unit 3P 1200A Electronic LSI

Brand: NHP

SKU: 140GNTHE12

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Electronic Trip Unit

Technical Specifications

Rated Current: 1200 A
Number of Poles: 3
Type of Protection: Electronic release
Trip Curve: LSI
Long Time Overload Protection Adjustment: 480-1200 A
Instantaneous Protection Adjustment: 1800-18000 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Short Time Protection Adjustment: 720-12000 A
Rated Impulse Withstand Voltage: 8 kV
Maximum Operating Temperature: 75 °C
Storage Temperature: -40-80 °C
Max Altitude Before Derating: 2000 m
Dimensions (H x L x W): 300mm x 150mm x 210mm
Weight: 10 kg

Key Features

Electronic release trip unit for precise protection.
LSI trip curve for long-time, short-time, and instantaneous protection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in large buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS 60898 for safety and performance standards.

Environmental Benefits

Designed for high efficiency and reliability in power distribution.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB N Frame Trip Unit 3P 1200A Electronic LSI is available now for immediate purchase. Ideal for industrial and commercial power distribution systems.

Non-Returnable & Non-Cancellable

140GNTHE12-AU-140G-MCCB-Trip-Unit-Datasheet.pdf (140GNTHE12-AU-140G-MCCB-Trip-Unit-Datasheet.pdf, 203 Kb) [Download]
