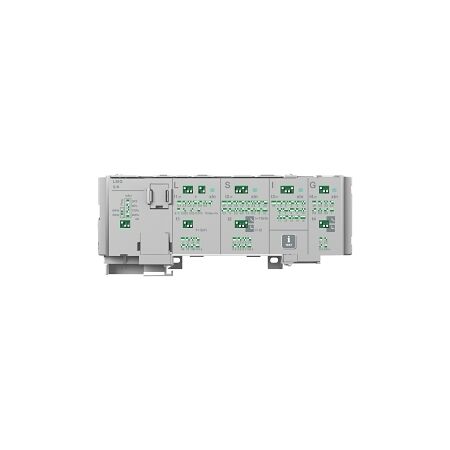

Allen-Bradley 140G MCCB N Frame Trip Unit 3P 1200A Electronic LSIG

MCCB N Frame Trip Unit 3P 1200A | Electronic LSIG | High Efficiency by NHP

BRAND: NHP

SKU: 140GNTIE12

$8,488.20 List price: $11,271.20

+ −

30 Days Return Delivery Options

MCCB N Frame trip unit with 1200A rated current and electronic LSIG protection—ideal for industrial and commercial power distribution. Built for precise trip settings, with high efficiency and reliability in power management.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB N Frame Trip Unit 3P 1200A Electronic LSIG

Brand: NHP

SKU: 140GNTIE12

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Electronic Trip Unit

Technical Specifications

Rated Current: 1200 A
Number of Poles: 3
Type of Protection: Electronic release
Trip Curve: LSIG
Long Time Overload Protection Adjustment: 480-1200 A
Instantaneous Protection Adjustment: 1800-18000 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Short Time Protection Adjustment: 720-12000 A
Rated Impulse Withstand Voltage: 8 kV
Rated Surrounding Temperature: -40 to 40 °C
Maximum Operating Temperature: 75 °C
Storage Temperature: -40 to 80 °C
Max Altitude Before Derating: 2000 m
Dimensions (H x L x W): 300mm x 150mm x 210mm
Weight: 10 kg

Key Features

Electronic release for precise trip settings.
LSIG trip curve for comprehensive protection.

Professional Installation Requirements

Professional installation by a qualified electrician is required for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in large buildings
General: Protection for electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS 60898 for safety and performance standards.

Environmental Benefits

Designed for high efficiency and reliability in power management.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB N Frame Trip Unit 3P 1200A Electronic LSIG is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

140GNTIE12-AU-140G-MCCB-Trip-Unit-Datasheet.pdf (140GNTIE12-AU-140G-MCCB-Trip-Unit-Datasheet.pdf, 204 Kb) [Download]
