MCCB NS Frame 70kA 3P 1200A | Electronic LSIG | Compact Design by NHP
MCCB with 70kA breaking capacity and electronic LSIG protection—ideal for industrial and commercial power distribution. Built for precise protection, with integrated earth fault and adjustable overload settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

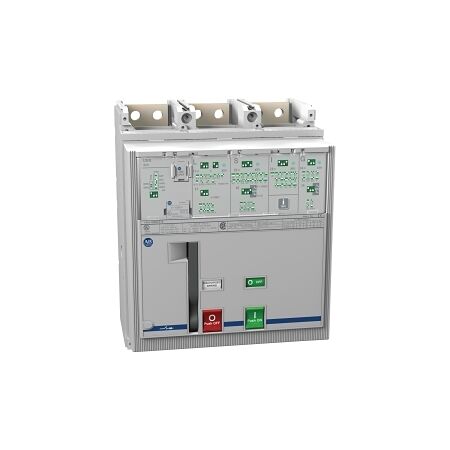

Product Name/Title: Allen-Bradley 140G MCCB NS Frame 70kA 3P 1200A Electronic LSIG
Brand: NHP
SKU: 140GNS6I3E12
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 1200A
Technical Specifications
- Rated Current: 1200 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 70 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSIG
- Frame Size Rating: 1250 A
- Long Time Overload Protection Adjustment Range: 480-1200 A
- Instantaneous Protection Adjustment Range: 1800-18000 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 1000 V
- Rated Short Circuit Breaking Capacity at 690 V AC: 42 kA
- Rated Short Circuit Breaking Capacity at 690 V AC: 31.5 kA
- Short Time Protection Adjustment Range: 720-12000 A
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life at Un in Service Cycles: 2000 cycles
- Mechanical Life Service Cycles: 10000 cycles
- Power Loss: 252 W
- Dimensions (H x L x W): 268mm x 193mm x 210mm
- Weight: 11 kg
Key Features
- Electronic release trip unit for precise protection.
- Integrated earth fault protection.
- Long time overload and short time protection adjustment ranges.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution and protection in manufacturing facilities
- Commercial: Electrical systems in commercial buildings
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high efficiency and reduced energy loss.
Warranty Information
Standard warranty applies.
Available Now
The Allen-Bradley 140G MCCB NS Frame 70kA 3P 1200A Electronic LSIG is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
Non-Returnable & Non-Cancellable
