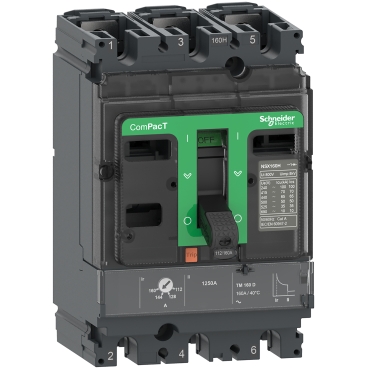

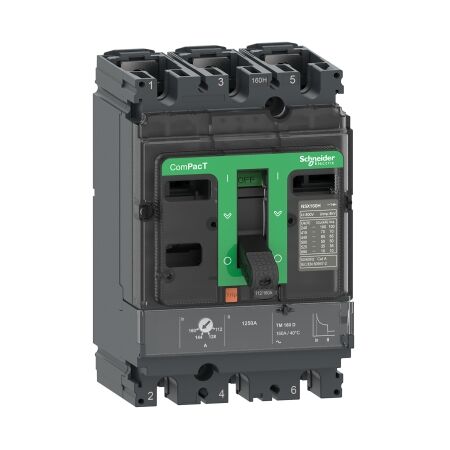

MCCB NSX100F 36kA/415VAC 3 Pole Circuit Breaker | 32A Rated Current | Thermal-Magnetic Trip Unit | by Clipsal
The MCCB NSX100F 36kA/415VAC 3 Pole Circuit Breaker is designed for reliable protection in commercial and industrial electrical distribution systems. With a rated current of 32A and a breaking capacity of 36kA, this thermal-magnetic trip unit ensures high performance and compliance with IEC standards. Ideal for switchboards and motor protection, it offers peace of mind for your electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCCB NSX100F 36kA/415VAC 3 Pole Circuit Breaker | 32A Rated Current | Thermal-Magnetic Trip Unit | by Clipsal
Brand: Clipsal
SKU: SCHC10F3TM032
Alternatively Known As: NSX100F MCCB, 32A 3 Pole MCCB, Schneider MCCB 32A, Molded Case Circuit Breaker 32A, NSX100F 36kA 3P
Technical Specifications
- Rated current: 32A
- Number of poles: 3
- Rated operational voltage: 415VAC
- Breaking capacity: 36kA at 415VAC
- Trip unit: Thermal-magnetic (TM32D)
- Frame size: NSX100F
- Standards: IEC 60947-2
- Mounting: Fixed
- Frequency: 50/60Hz
- Operating temperature: -25°C to +70°C
- Dimensions (H x L x W): 161mm x 86mm x 76mm
- Weight: 2.2 kg
Key Features
- Rated current: 32A
- Breaking capacity: 36kA at 415VAC
- 3 pole configuration
- Thermal-magnetic trip unit
- Compact NSX100F frame
- High performance and reliability
- Suitable for isolation and protection
- Complies with IEC 60947-2
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main circuit protection
- Switchboards and panel boards
- Motor protection
- Infrastructure and building projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports energy-efficient electrical distribution by minimizing downtime and electrical faults.
- Long operational life reduces replacement frequency and associated waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal MCCB NSX100F 36kA/415VAC 3 Pole 32A (SCHC10F3TM032) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems.
