Trade Discount 25%

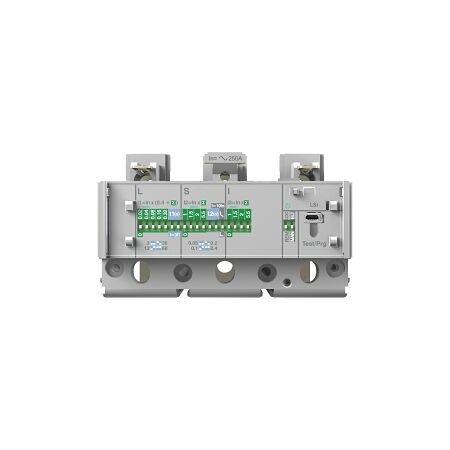

MCCB Trip Unit 3P 40A | Electronic LSI | J Frame | 250A by NHP
MCCB trip unit with 3 poles and 40A rated current—ideal for industrial motor control and commercial electrical distribution. Built for precise protection with electronic LSI trip curve and 250A frame size.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley 140G MCCB J Frame Trip Unit 3P 40A Electronic LSI
Brand: NHP
SKU: 140GJTH3C40
Alternatively Known As: MCCB Trip Unit, Circuit Breaker, Electronic Trip Unit
Technical Specifications
- Rated Current: 40 A
- Number of Poles: 3
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Frame Size Rating: 250 A
- Long Time Overload Protection Adjustment Range: 16-40 A
- Instantaneous Protection Adjustment Range: 40-400 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage Ui: 1000 V
- Short Time Protection Adjustment Range: 40-400 A
- Rated Impulse Withstand Voltage Uimp: 8 kV
- Rated Surrounding Temperature Without Derating: 40 °C
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40-80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 150mm x 200mm x 105mm
- Weight: 1.5 kg
Key Features
- Electronic release for precise trip settings.
- LSI trip curve for enhanced protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and protection
- Commercial: Electrical distribution systems
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Designed to operate efficiently in a wide range of temperatures, reducing energy waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB J Frame Trip Unit 3P 40A Electronic LSI is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
Non-Returnable & Non-Cancellable
