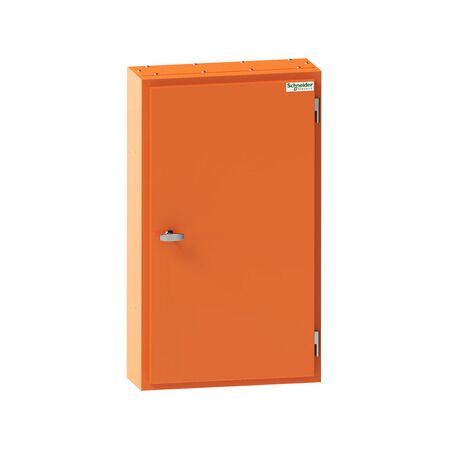

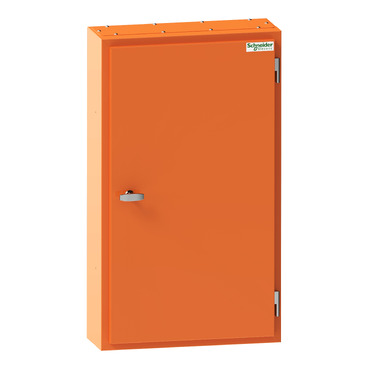

MD Isobar 36P C60 IP56 160A Orange Distribution Board | 36 Pole Capacity | Lockable Door & Powder-Coated Steel | @Pack of 1 | by Clipsal
The MD Isobar 36P C60 IP56 160A Orange Distribution Board is designed for robust electrical distribution in commercial and industrial settings. With a 36 pole capacity and IP56 rating for dust and water resistance, it ensures reliable performance. Built from durable powder-coated steel, this board features a lockable door for enhanced safety, making it ideal for large-scale residential complexes and warehouses.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MD Isobar 36P C60 IP56 160A Orange Distribution Board | 36 Pole Capacity | Lockable Door & Powder-Coated Steel | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHMD236DM1X15
Alternatively Known As: Clipsal Isobar Distribution Board, 36 Pole Switchboard, Clipsal MD Isobar 160A, Clipsal Orange Distribution Board, IP56 Electrical Panel
Technical Specifications
- Number of Poles: 36
- Main Switch Rating: 160A
- IP Rating: IP56 (dust and water resistant)
- Enclosure Material: Powder-coated steel
- Colour: Orange
- Compatible with: C60 circuit breakers
- Lockable door
- Surface mount design
- Dimensions (H x L x W): 800mm x 200mm x 600mm
- Weight: 18 kg
Key Features
- 36 pole capacity for extensive circuit management
- IP56 rated for superior dust and water ingress protection
- 160A main switch for high current applications
- Robust orange powder-coated steel enclosure for high visibility and durability
- Suitable for C60 circuit breakers
- Lockable door for enhanced safety and security
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution
- Large-scale residential complexes
- Warehouses and factories
- Switchboard and sub-distribution panel installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61439 – Low-voltage switchgear and controlgear assemblies
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Weatherproof design minimizes risk of environmental contamination from electrical faults
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Isobar MD 36 Pole C60 IP56 160A Orange Distribution Board is available for immediate purchase. Ideal for commercial, industrial, and large residential electrical distribution applications.
