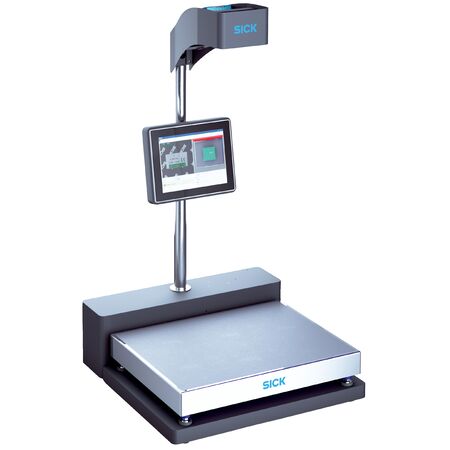

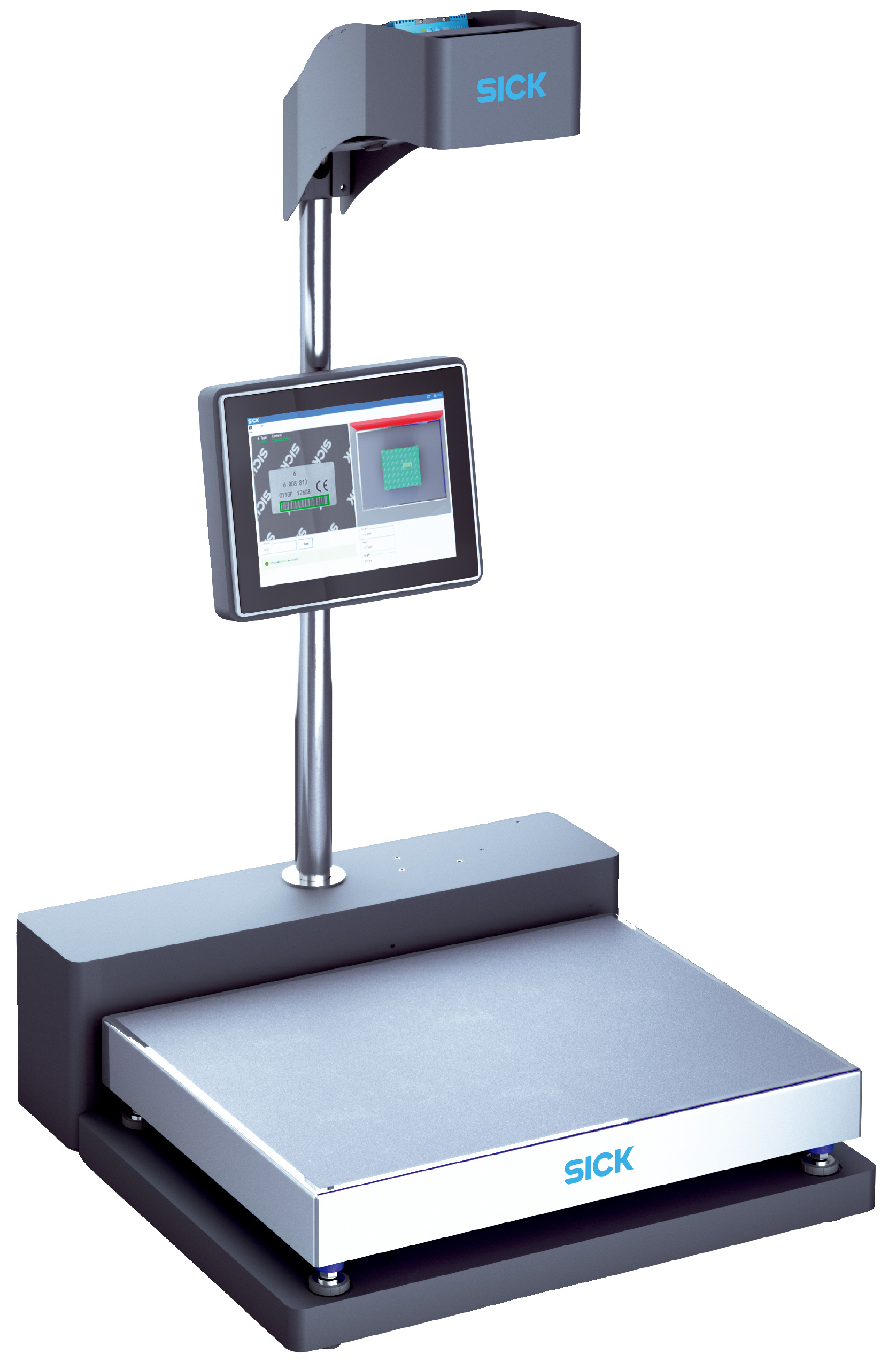

MDAV-L632 Dimensioning and Weighing System | 1 Mpixel Sensor | 12” Touch Display | Automatic Trigger | by SICK
The MDAV-L632 Dimensioning and Weighing System features a 1 Mpixel sensor with adjustable focus, perfect for measuring dimensions, contours, and volumes of various objects. With a throughput of up to 1000 pieces per hour and support for multiple code types, this system is ideal for industrial automation and logistics applications, ensuring high accuracy and efficiency in object identification and weighing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor resolution: 1 Mpixel
- Focus: Adjustable manually
- Enclosure rating: IP20
- Supply voltage: 24 V DC
- Panel PC: 12” touch display (1024 x 768 RGB)
- Trigger: Automatic when placing an object
- Total weight: 70 kg
- External power supply: AC 100 V to 240 V, 50 Hz to 60 Hz
- Code types: 1D, 2D, Stacked code, PDF417, Aztec, 4-state Maxi-Code
- Minimum object size: 40 mm x 40 mm x 10 mm
- Maximum object size: 600 mm x 500 mm x 400 mm (up to 800 mm x 500 mm x 200 mm)
- Throughput: 1000 pieces per hour
- Accuracy of object coverage: ±5 mm x ±5 mm x ±2 mm for cubic objects
- Accuracy of scale: d=5 g (40 g to 15 kg), d=10 g (15 kg to 30 kg), d=20 g (30 kg to 60 kg)
- Reading speed: 60 ms to 680 ms depending on code and background
- Interfaces: Ethernet with TCP/IP, FTP, SFTP
- Output data formats: .jpg images, .txt, .csv, .xml on request
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +60 °C
- Relative humidity: ≤ 90%, non-condensing
- Dimensions (H x L x W): 1330mm x 690mm x 700mm
- Weight: 70 kg
Key Features
- 1 Mpixel sensor resolution with adjustable manual focus
- Includes image recording capability
- Manual object infeed and outfeed
- Standard field of view for code reading
- 12” touch display panel PC with 1024 x 768 RGB resolution
- Automatic trigger when placing an object
- Throughput of up to 1000 pieces per hour
- High accuracy in object coverage and weighing
- Supports multiple code types including 1D, 2D, PDF417, Aztec, Maxi-Code
- Ethernet connectivity with TCP/IP, FTP, SFTP protocols
- Outputs data including dimensions, volume, code data, weight, status, and images
Professional Installation Requirements
- Professional installation by qualified technicians is recommended to ensure proper setup and calibration.
Applications
- Measuring dimension, contour, and volume of objects
- Weighing objects with legal-for-trade certification
- Identifying 1D and 2D codes including stacked codes
- Industrial automation and logistics for object measurement and identification
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables efficient logistics and inventory management reducing waste
- Supports accurate measurement to optimize packaging and transport
- Energy-efficient operation with low power consumption
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK MDAV-L632 Dimensioning and Weighing System is available for immediate purchase, ideal for industrial and logistics applications requiring precise measurement and identification.
