Trade Discount 21%

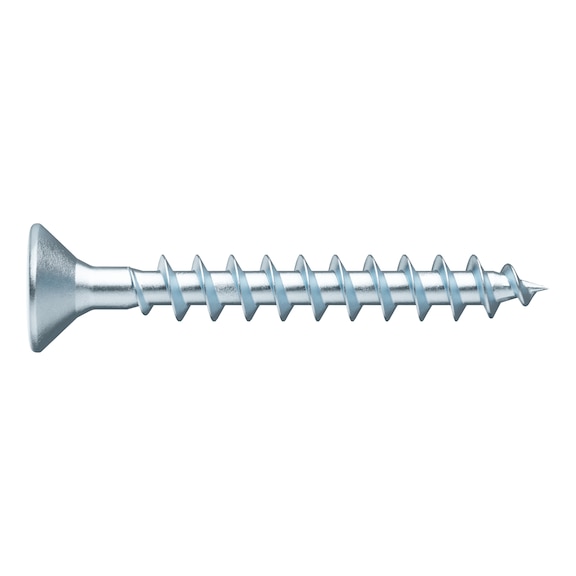

MDF Fittings Screw | Full Thread Countersunk Head | Zinc-Plated Steel | @Pack of 100 | by Wurth
MDF fittings screws with a full thread and countersunk head are perfect for interior fitting and furniture assembly. Made from hardened steel and zinc-plated for durability, these screws ensure optimal anchoring in wood and compatibility with metal fittings. Ideal for professionals, they provide reliable fastening in MDF and other compressed materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MDF Fittings Screw | Full Thread Countersunk Head | Zinc-Plated Steel | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 190013515
Alternatively Known As: MDF screws, Countersunk head wood screws, Full thread cabinet screws, Zinc plated MDF screws, Furniture fitting screws
Technical Specifications
- Nominal diameter: 3.4 mm
- Length: 15 mm
- Head type: Countersunk head
- Head diameter: 7 mm
- Head height: 2.3 mm
- Internal drive: RW10
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Single start thread
- Thread length: 11 mm
- Core diameter: 1.8 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 30 degrees
- Material: Hardened steel
- Surface finish: Zinc plated
- Colour: Silver
- Screw-in angle range: 45-90 degrees
- Product weight per item: 0.650 g
- Suitable materials: Wood, Derived timber product, MDF
- Suitable machines: Würth BS 12-A Power
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.3mm x 15mm x 7mm
- Weight: 0.65 kg
Key Features
- Full-thread screw with countersunk head for fastening fittings or cabinet connectors in highly compressed fibreboards such as MDF
- RW drive for ideal power transmission and more power due to larger contact area at the bit
- More stability and precise positioning with tight-fit recess and perfect bit fit
- Compatibility with previous AW drive
- Form-fitting connection to metal fittings or wooden products with high bulk density
- Perfect fit of 90° head in fitting parts with metal countersinks
- Pulls together without head milling due to lack of milling elements below the head
- Maximum reliability due to asymmetrical single thread
- Optimal matching of drill tip and thread geometry
- Excellent anchoring in wood due to asymmetrical thread flanks
- Ideal for friction-free screw fitting in plastic anchors or homogeneous highly compressed wooden materials
- Rapid screw bite through continuous thread design to tip
- Non-spreading screwing thanks to tip geometry without splitting components
Professional Installation Requirements
- Installation by professionals or skilled personnel recommended to ensure proper fastening and safety.
Applications
- Interior fitting
- Exhibition stand construction
- Furniture assembly
- Cabinet making
- Store construction
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth ASSY® 4 CS MDF fittings screws are available for immediate purchase, ideal for interior fitting, furniture, and cabinet construction applications.
