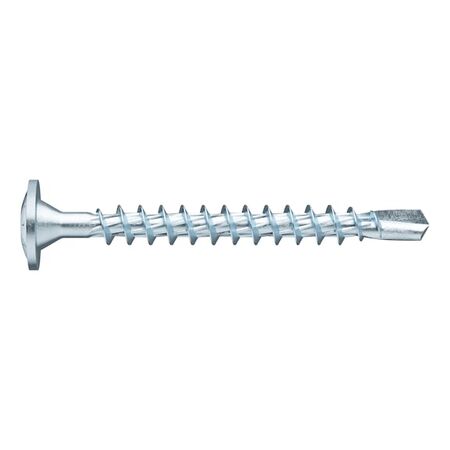

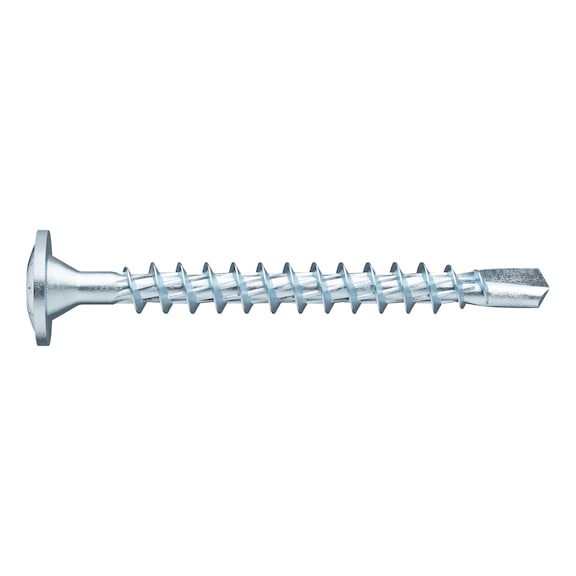

MDF Rear Panel Screw | Full Thread & Drilling Tip | Round Washer Head | @Pack of 500 | by Wurth
MDF rear panel screws with a full thread and drilling tip are perfect for furniture assembly and cabinet making. Designed for optimal performance in MDF and timber products, these screws feature a round washer head for a strong connection and a visually appealing finish. Made from hardened zinc-plated steel, they ensure durability and compliance with RoHS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MDF Rear Panel Screw | Full Thread & Drilling Tip | Round Washer Head | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 178333540
Alternatively Known As: MDF rear panel screws, full thread wood screws, zinc plated MDF screws, furniture assembly screws, cabinet screws
Technical Specifications
- Nominal diameter: 3.4 mm
- Length: 40 mm
- Thread length: 31 mm
- Screw-thread length with drill tip: 36 mm
- Head type: Round washer head
- Head diameter: 8 mm
- Head height: 1.4 mm
- Internal drive: RW10
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Single start thread
- Core diameter: 1.9 mm
- Shape of tip: Drilling tip
- Material: Hardened steel
- Surface: Zinc plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Wood, derived timber products, MDF, chipboard, plywood
- Approval: ETA-11/0190
- Product weight per item: 2.280 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.4mm x 40mm x 8mm
- Weight: 1.14 kg
Key Features
- Full-thread wood screw with drilling tip optimized for MDF
- Round washer head for strong connection and visually appealing finish
- RW10 internal drive for ideal power transmission and fewer bit changes
- Large head diameter with small thread diameter to maximize pull-out strength and minimize splitting
- Serrated screw core for optimum chip distribution preventing material pressing
- Compatible with wood, derived timber products, MDF, chipboard, and plywood
- Hardened steel construction with zinc plating for durability
- ETA-11/0190 approved and RoHS-compliant
Professional Installation Requirements
- Recommended installation by professionals familiar with MDF and timber product assembly to ensure optimal screw performance and material integrity.
Applications
- Furniture assembly
- Cabinet making
- Store construction
- Exhibition stand construction
- Interior fitting
- MDF furniture installation
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms and conditions.
Available Now
Available for immediate purchase, ideal for furniture, cabinet, and interior fitting applications.
