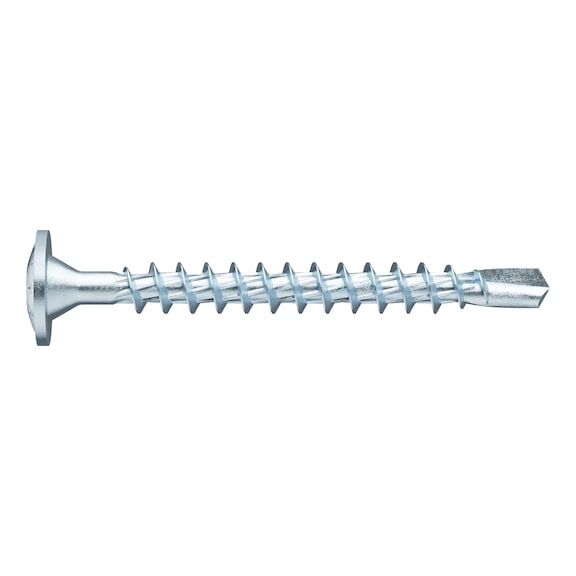

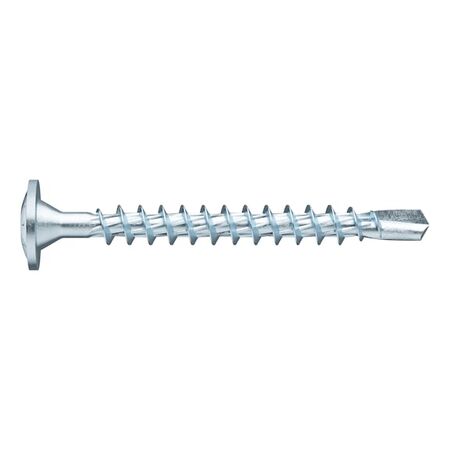

MDF Rear Panel Screws | Full Thread with Drill Tip | 500 PCS | by Wurth
MDF rear panel screws designed for furniture assembly, featuring a full thread and drill tip optimized for MDF. With a round washer head for a strong connection and RW10 internal drive for efficient power transmission, these screws ensure easy installation without predrilling. Ideal for professionals in cabinet making and interior fitting, they provide maximum pull-out strength while minimizing material damage.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MDF Rear Panel Screws | Full Thread with Drill Tip | 500 PCS | by Wurth
Brand: Wurth
SKU: 178333535
Alternatively Known As: MDF rear panel screws, full thread wood screws, zinc plated MDF screws, furniture assembly screws, cabinet screws
Technical Specifications
- Nominal diameter: 3.4 mm
- Length: 35 mm
- Thread length: 25 mm
- Screw-thread length with drill tip: 30 mm
- Head type: Round washer head
- Head diameter: 8 mm
- Head height: 1.4 mm
- Internal drive: RW10
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Single start thread
- Core diameter: 1.9 mm
- Shape of tip: Drilling tip
- Material: Hardened steel
- Surface: Zinc plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Wood, derived timber products, MDF, chipboard, plywood
- Approval: ETA-11/0190
- Product weight per item: 1.478 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 35mm x 35mm x 8mm
- Weight: 0.75 kg
Key Features
- Full-thread wood screw with drill tip optimized for MDF
- Round washer head with 8 mm diameter for strong connection
- RW10 internal drive for ideal power transmission and fewer bit changes
- Drill tip allows mounting without predrilling, splitting, or bulging
- Large flat-shaped washer head for stable and visually appealing connections
- Thread designed to prevent pressing in MDF material and optimize chip distribution
- Compatible with wood, derived timber products, MDF, chipboard, and plywood
- Hardened steel construction with zinc plating for durability
- Maximum pull-out strength with minimal splitting effect
Professional Installation Requirements
- Recommended installation by professionals or skilled tradespeople to ensure proper mounting and avoid material damage.
Applications
- Furniture assembly
- Cabinet making
- Store construction
- Exhibition stand construction
- Interior fitting
- MDF furniture assembly
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Comes with Wurth's standard product warranty against manufacturing defects.
Available Now
Wurth ASSY®plus 4 BP MDF rear panel screws are available for immediate purchase, ideal for furniture and interior fitting applications.
