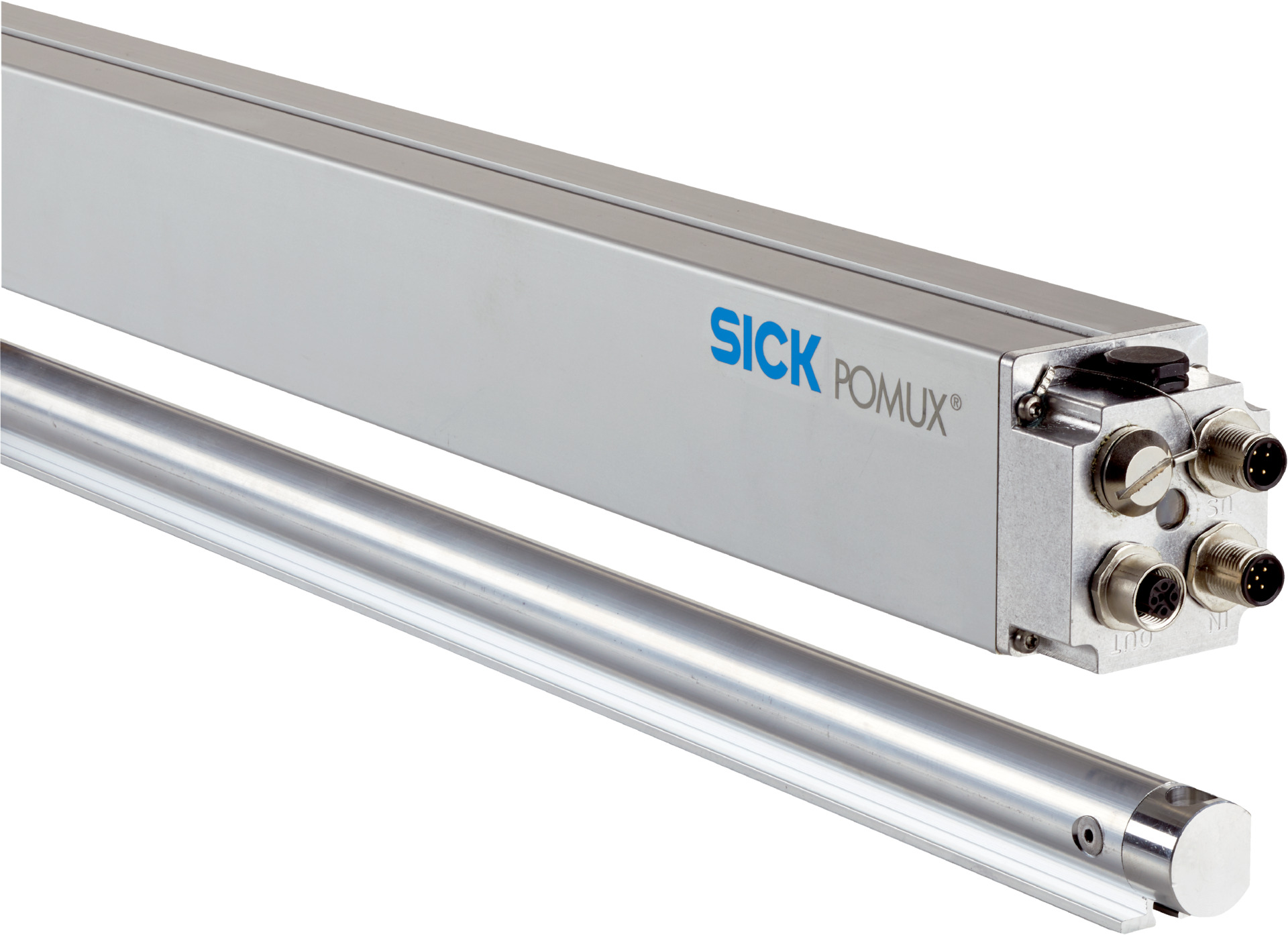

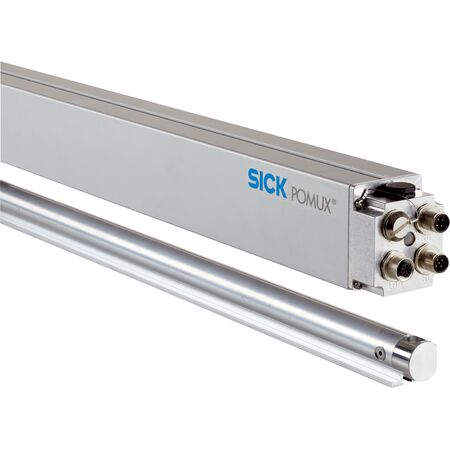

Measuring Encoder KHK53-PXF00107 | 107m Range | 0.1mm Resolution | IP67 Enclosure | by SICK
The KHK53-PXF00107 measuring encoder is designed for precision in industrial automation, featuring a measuring range of up to 107 meters and a high resolution of 0.1 mm. With an IP67 rated enclosure, it withstands harsh environments, making it ideal for robotics and conveyor systems that require accurate position and speed measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Measuring Encoder KHK53-PXF00107 | 107m Range | 0.1mm Resolution | IP67 Enclosure | by SICK
Brand: SICK
SKU: 1036164
Alternatively Known As: Measuring Encoder, Position Encoder, Industrial Encoder, PROFIBUS Encoder
Technical Specifications
- Measuring range: 0 m to 107 m
- Resolution: 0.1 mm
- Traversing speed: 6.6 m/s
- Repeatability: 0.3 mm
- Measurement accuracy: ±1000 + ME (Tu-25 °C) Tk µm
- Communication interface: PROFIBUS DP
- Bus interface: RS-485 electrically isolated by optocoupler
- Position forming time: +1.1 ms
- Address setting: 0 to 127 via Hex switches or protocol
- Data protocol: PROFIBUS DP basic functions (DP-V0)
- Data transmission rate: 9.6 kBaud to 12 MBaud, automatic detection
- Supply voltage: 10 V to 32 V
- Power consumption: 2.5 W
- Connection type: Male connector, 3x, M12
- Enclosure rating: IP67 with mating plug inserted
- Operating temperature range: -20 °C to +60 °C
- Storage temperature range: -40 °C to +85 °C
- Shock resistance: 30 g, 10 ms
- Vibration resistance: 10 g, 20 Hz to 250 Hz
- Weight: 2.7 kg
- Read head material: AlMgSiPbF28
- Dimensions (H x L x W): 50mm x 200mm x 100mm
- Weight: 2.7 kg
Key Features
- Measuring range up to 107 meters
- High resolution of 0.1 mm
- Repeatability of 0.3 mm
- Robust IP67 rated enclosure for harsh environments
- Communication via PROFIBUS DP with RS-485 bus interface
- Fast position forming time of +1.1 ms
- Wide operating temperature range from -20°C to +60°C
- Shock resistance up to 30 g and vibration resistance up to 10 g
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with PROFIBUS DP systems and electrical safety standards.
Applications
- Industrial automation and control systems
- Position and speed measurement in manufacturing processes
- Robotics and conveyor systems requiring precise measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 2.5 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK KHK53-PXF00107 measuring encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
