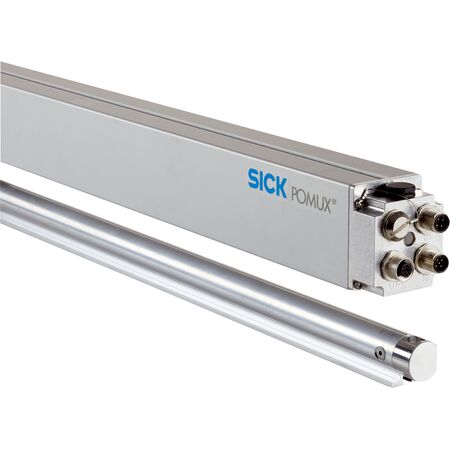

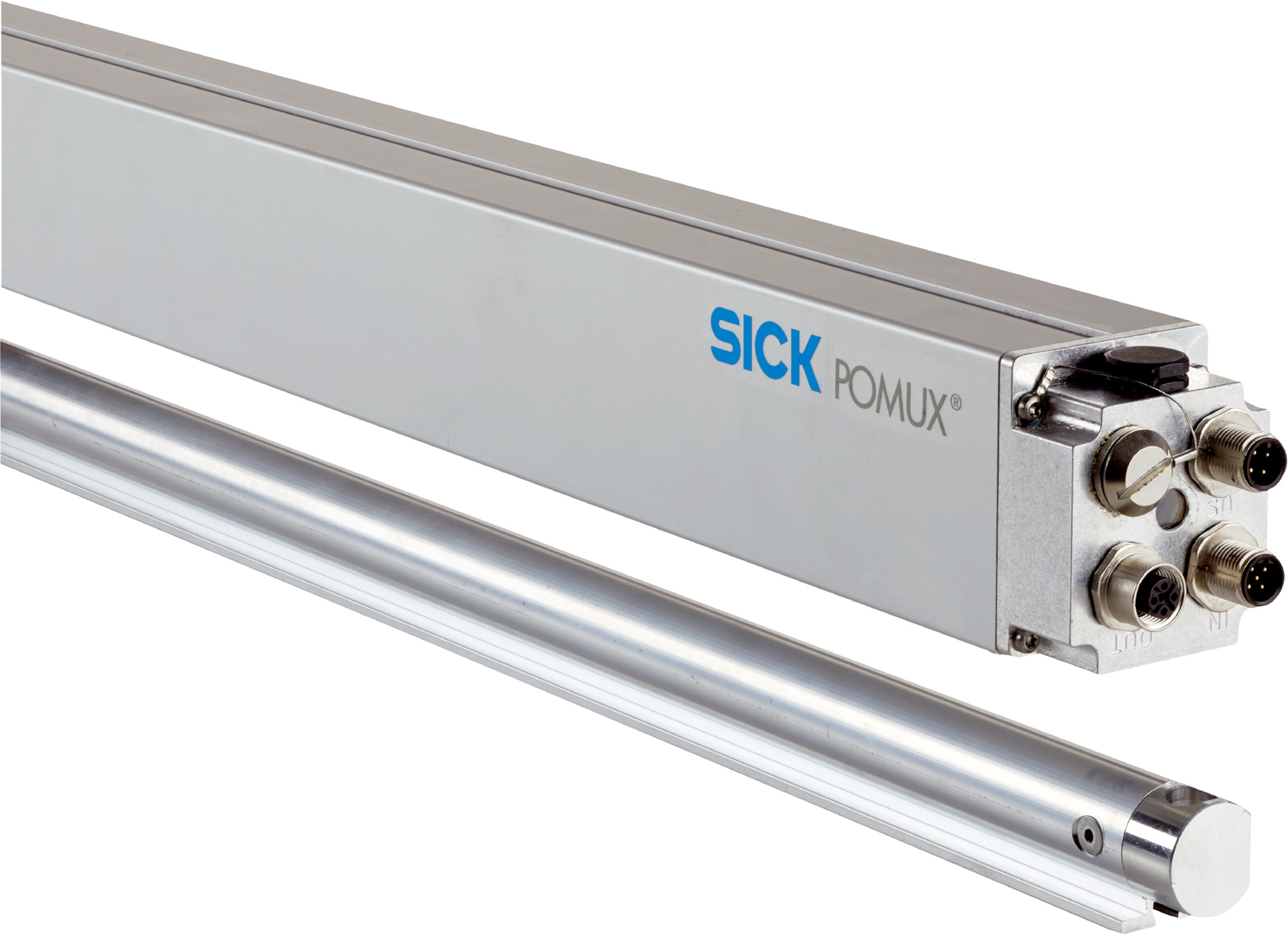

Measuring Encoder KHK53-PXF00354 | 354m Range | 0.1mm Resolution | IP67 Rated | by SICK
The KHK53-PXF00354 Measuring Encoder is designed for precision in industrial automation, featuring a high measuring range of up to 354 meters and a resolution of 0.1 mm. With a robust IP67 enclosure, it withstands harsh environments, making it ideal for applications in manufacturing processes, robotics, and safety-related systems. Its fast traversing speed of 6.6 m/s ensures reliable performance in dynamic settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Measuring Encoder KHK53-PXF00354 | 354m Range | 0.1mm Resolution | IP67 Rated | by SICK
Brand: SICK
SKU: 1036165
Alternatively Known As: Measuring Encoder, Industrial Encoder, Position Encoder, PROFIBUS Encoder
Technical Specifications
- Measuring range: 0 m to 354 m
- Resolution: 0.1 mm
- Traversing speed: 6.6 m/s
- Repeatability: 0.3 mm
- Measurement accuracy: ±1000 + ME (Tu-25 °C) Tk µm
- Communication interface: PROFIBUS DP
- Bus interface: RS-485 electrically isolated by optocoupler
- Position forming time: +1.1 ms
- Address setting: 0 to 127 via Hex switches or protocol
- Data protocol: PROFIBUS DP basic functions (DP-V0)
- Data transmission rate: 9.6 kBaud to 12 MBaud automatic detection
- Supply voltage: 10 V to 32 V
- Power consumption: 2.5 W
- Connection type: Male connector, 3x, M12
- Enclosure rating: IP67 with mating plug inserted
- Operating temperature range: -20 °C to +60 °C
- Storage temperature range: -40 °C to +85 °C
- Shock resistance: 30 g, 10 ms
- Vibration resistance: 10 g, 20 Hz to 250 Hz
- Read head material: AlMgSiPbF28
- Dimensions (H x L x W): 50mm x 200mm x 100mm
- Weight: 3.6 kg
Key Features
- High measuring range up to 354 meters
- High resolution of 0.1 mm and repeatability of 0.3 mm
- Robust IP67 rated enclosure for harsh environments
- Fast traversing speed of 6.6 m/s
- Communication via PROFIBUS DP and RS-485 bus interface
- Electrically isolated bus interface with optocoupler
- Wide operating temperature range from -20 °C to +60 °C
- Shock resistance up to 30 g and vibration resistance up to 10 g
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with PROFIBUS DP systems and electrical safety standards to ensure proper setup and compliance.
Applications
- Industrial automation and control systems
- Position and speed measurement in manufacturing processes
- Robotics and conveyor systems requiring precise measurement
- Safety-related applications requiring reliable encoder feedback
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of 2.5 W supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KHK53-PXF00354 Measuring Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
