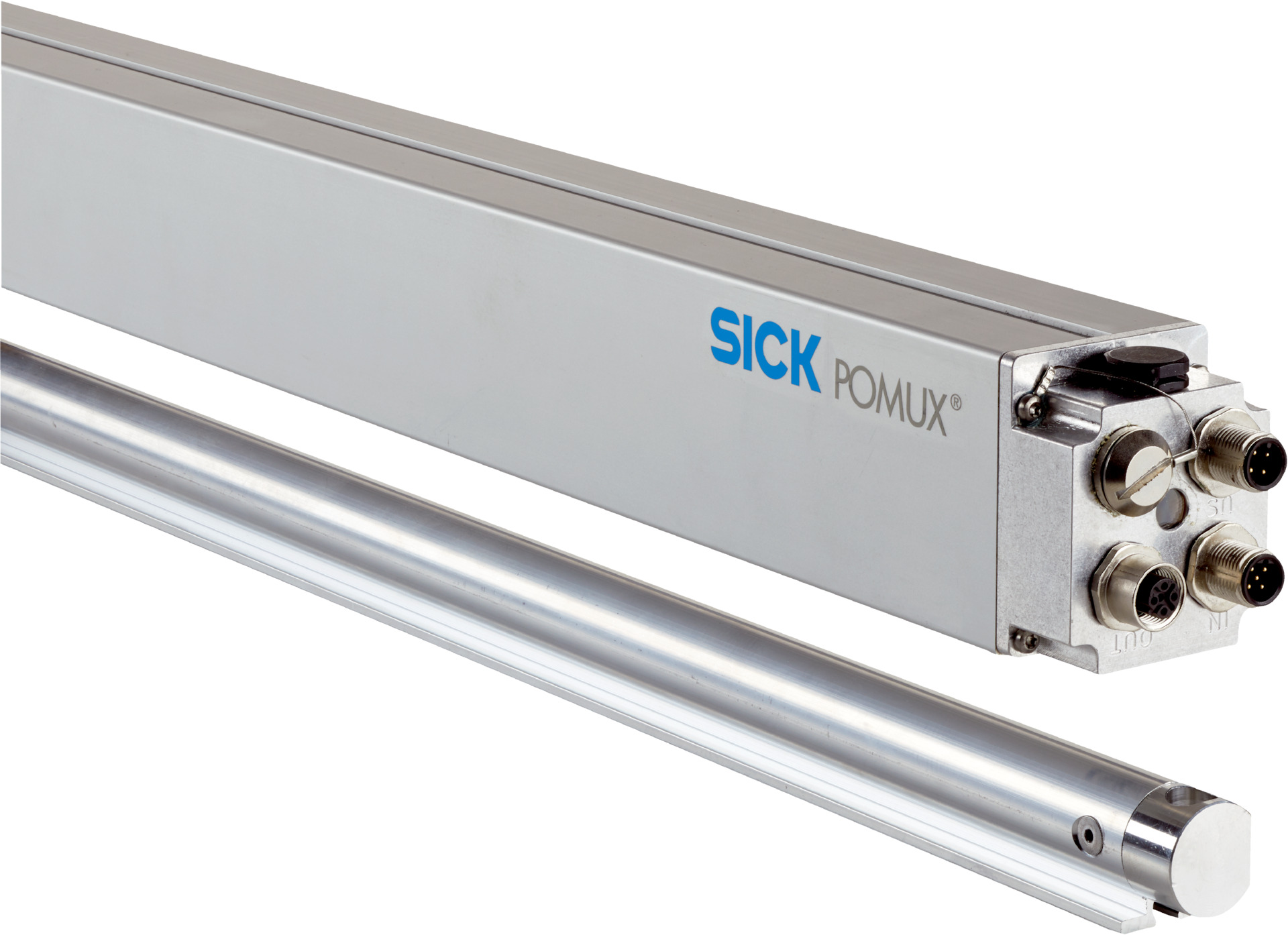

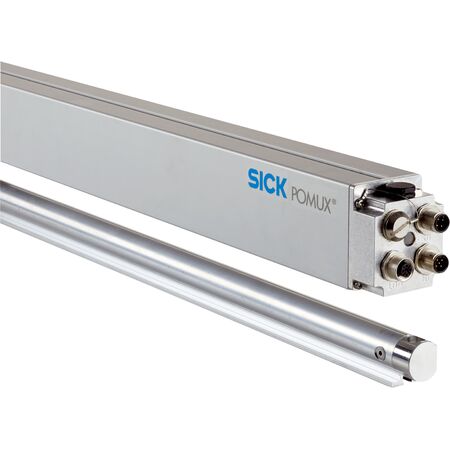

Measuring Encoder KHK53-PXF00548 | 548 m Range | 0.1 mm Resolution | IP67 Enclosure | by SICK
The KHK53-PXF00548 Measuring Encoder is designed for precision in industrial automation, featuring a measuring range of up to 548 m and a high resolution of 0.1 mm. With a robust IP67 enclosure, it operates effectively in harsh environments, making it ideal for safety-related applications and manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Measuring Encoder KHK53-PXF00548 | 548 m Range | 0.1 mm Resolution | IP67 Enclosure | by SICK
Brand: SICK
SKU: 1036168
Alternatively Known As: Measuring Encoder, Position Encoder, Industrial Encoder, PROFIBUS Encoder
Technical Specifications
- Measuring range: 0 m to 548 m
- Resolution: 0.1 mm
- Traversing speed: 6.6 m/s
- Repeatability: 1 mm
- Measurement accuracy: ± 2000 + ME (Tu-25° C) Tk µm
- Communication interface: PROFIBUS DP
- Bus interface: RS-485, electrically isolated by optocoupler
- Position forming time: +1.1 ms
- Address setting: 0 to 127 via Hex switches or Protocol
- Data protocol: PROFIBUS DP basic functions (DP-V0)
- Data transmission rate: 9.6 kBaud to 12 MBaud, automatic detection
- Supply voltage: 10 V to 32 V
- Power consumption: 2.5 W
- Connection type: Male connector, 3x, M12
- Enclosure rating: IP67 with mating plug inserted
- Operating temperature range: –30 °C to +70 °C
- Storage temperature range: –40 °C to +85 °C
- Resistance to shocks: 30 g, 10 ms
- Resistance to vibration: 10 g, 20 Hz to 250 Hz
- Dimensions (H x L x W): 150mm x 300mm x 150mm
- Weight: 6.7 kg
Key Features
- Measuring range up to 548 m
- High resolution of 0.1 mm
- Repeatability of 1 mm
- Measurement accuracy ± 2000 + ME (Tu-25° C) Tk µm
- Robust IP67 enclosure rating for harsh environments
- Wide operating temperature range from –30 °C to +70 °C
- Resistance to shocks up to 30 g and vibration up to 10 g
- Communication via PROFIBUS DP and RS-485 interfaces
- Fast position forming time of +1.1 ms
- Low power consumption of 2.5 W
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with PROFIBUS DP and industrial encoder systems to ensure proper setup and safety compliance.
Applications
- Industrial automation and control systems
- Position measurement in manufacturing processes
- Safety-related applications requiring precise measurement
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KHK53-PXF00548 Measuring Encoder is available for immediate purchase, ideal for industrial automation and safety-related measurement applications.
