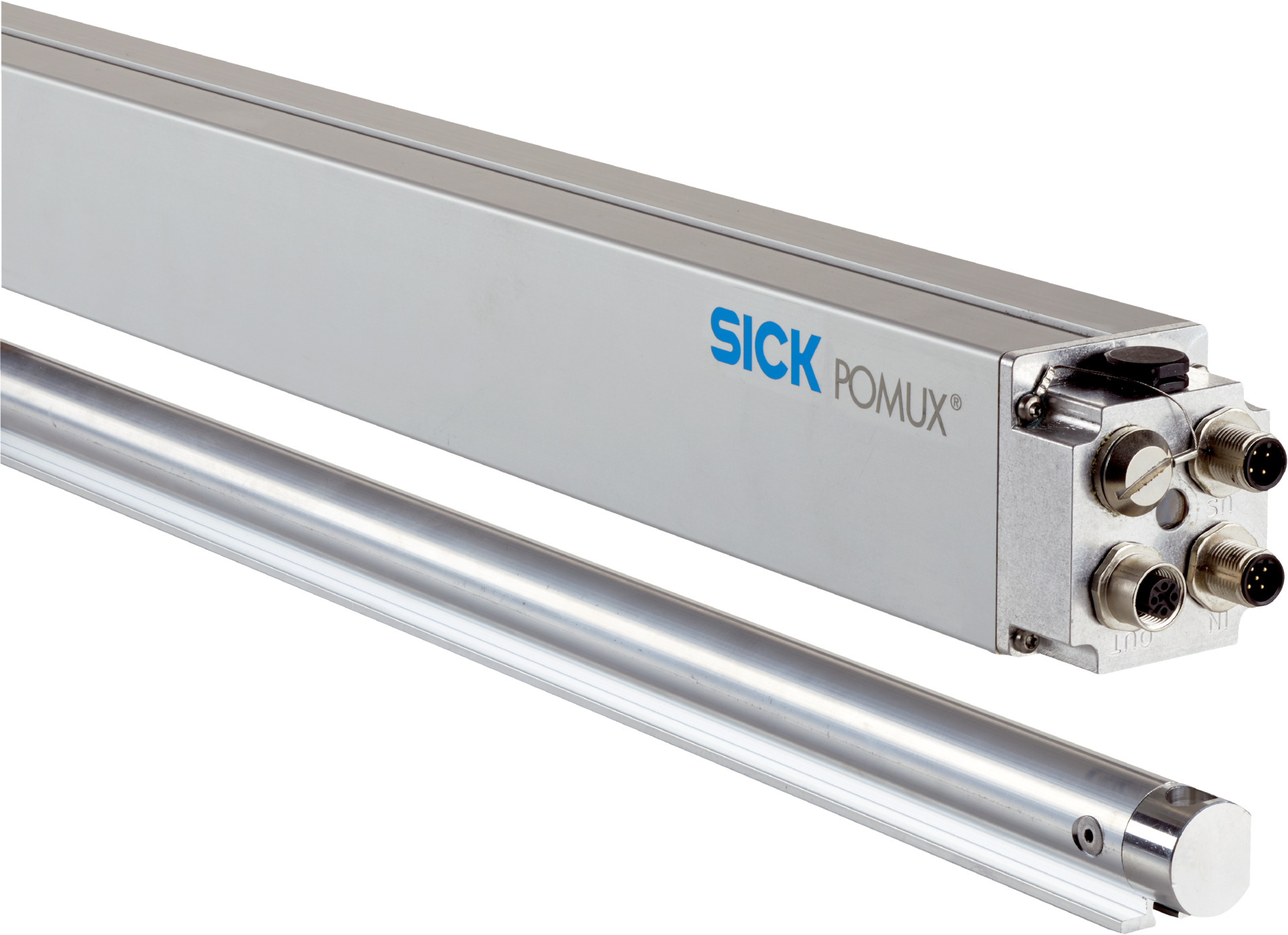

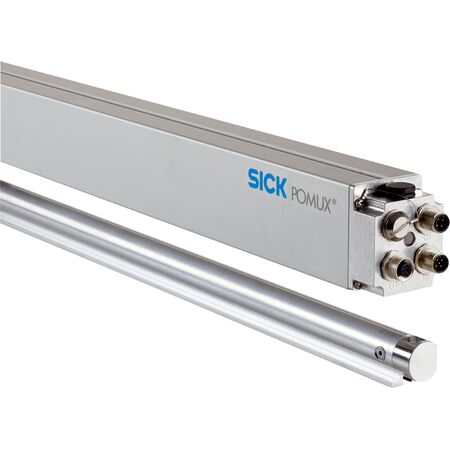

Measuring Encoder KHK53-PXF01700 | 1700 m Range | 0.1 mm Resolution | IP67 Rated | by SICK
The KHK53-PXF01700 measuring encoder offers a remarkable measuring range of up to 1700 m with a precision resolution of 0.1 mm, making it ideal for industrial automation and control systems. With a robust IP67 enclosure, it withstands harsh environments while ensuring high repeatability and measurement accuracy. Perfect for applications in manufacturing processes and robotics, this encoder guarantees reliability and performance in safety-critical settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Measuring Encoder KHK53-PXF01700 | 1700 m Range | 0.1 mm Resolution | IP67 Rated | by SICK
Brand: SICK
SKU: 1036166
Alternatively Known As: Measuring Encoder, Position Encoder, Industrial Encoder, PROFIBUS Encoder
Technical Specifications
- Measuring range: 0 m to 1700 m
- Resolution: 0.1 mm
- Traversing speed: 6.6 m/s
- Repeatability: 0.3 mm
- Measurement accuracy: ± 1000 + ME (Tu-25 °C) Tk µm
- Communication interface: PROFIBUS DP
- Bus interface: RS-485 electrically isolated by optocoupler
- Position forming time: +1.1 ms
- Address setting: 0 to 127 via Hex switches or protocol
- Data transmission rate: 9.6 kBaud to 12 MBaud automatic detection
- Supply voltage: 10 V to 32 V
- Power consumption: 2.5 W
- Connection type: Male connector, 3x, M12
- Enclosure rating: IP67 with mating plug inserted
- Operating temperature range: -20 °C to +60 °C
- Storage temperature range: -40 °C to +85 °C
- Shock resistance: 30 g, 10 ms
- Vibration resistance: 10 g, 20 Hz to 250 Hz
- Dimensions (H x L x W): 150mm x 400mm x 150mm
- Weight: 5.2 kg
Key Features
- Measuring range up to 1700 m with 0.1 mm resolution
- High repeatability of 0.3 mm and measurement accuracy ± 1000 + ME (Tu-25 °C) Tk µm
- Robust IP67 rated enclosure for harsh environments
- Fast traversing speed of 6.6 m/s
- Communication via PROFIBUS DP with RS-485 bus interface
- Electronics with low power consumption of 2.5 W and supply voltage 10 V to 32 V
- Position tolerance ± 10 mm
- Resistance to shocks up to 30 g and vibration up to 10 g
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with PROFIBUS DP systems and industrial electrical standards to ensure safety and optimal performance.
Applications
- Industrial automation and control systems
- Position measurement in manufacturing processes
- Safety-related applications requiring high reliability
- Robotics and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK KHK53-PXF01700 measuring encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications.
