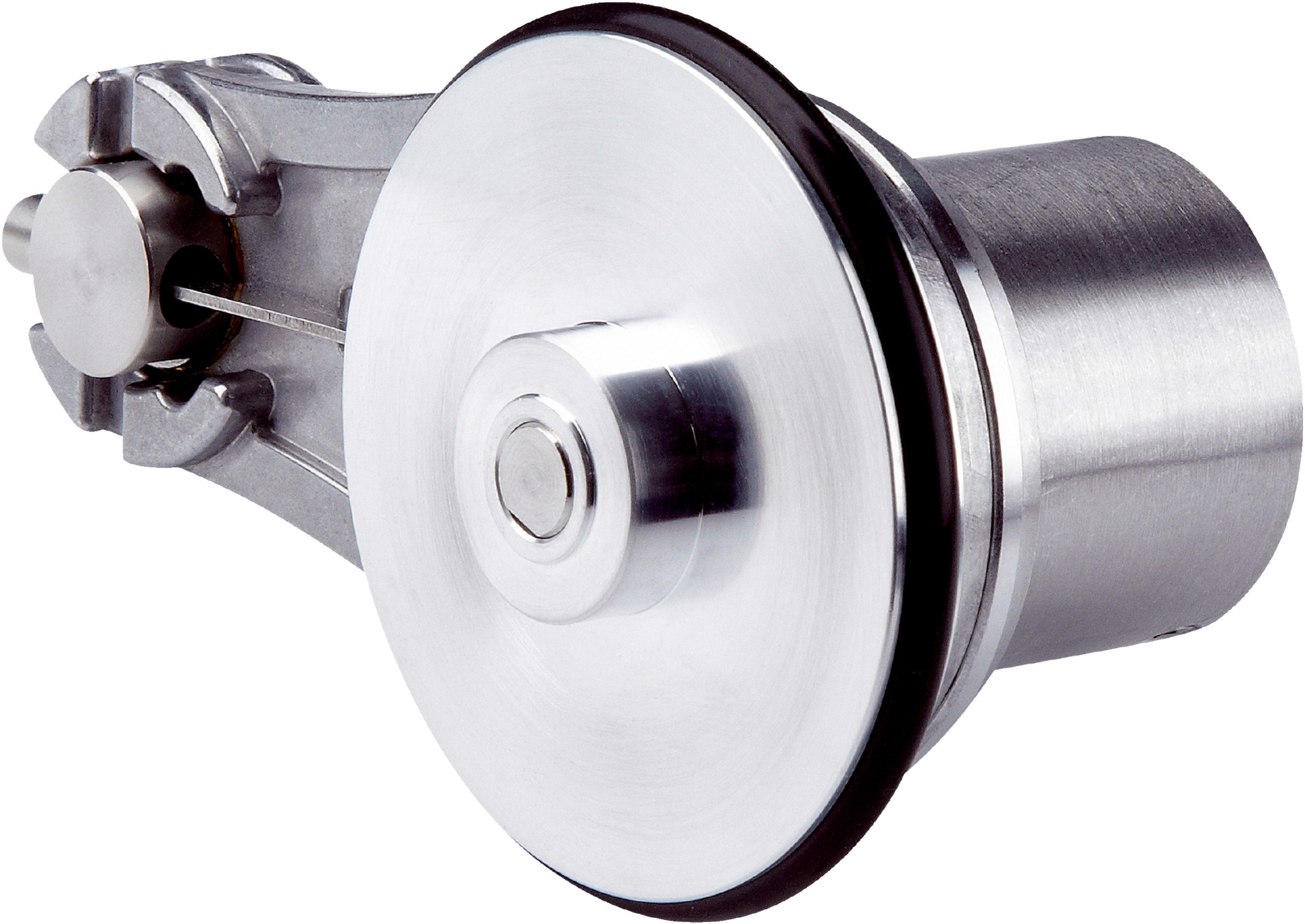

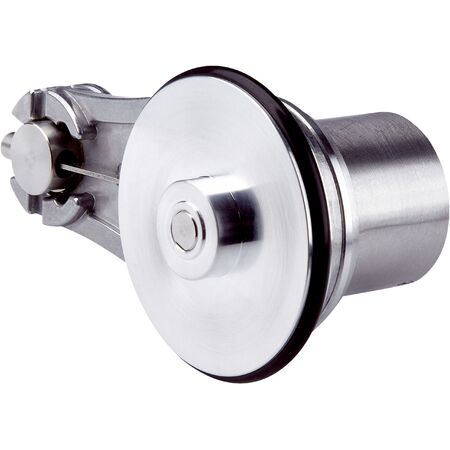

Measuring Wheel Encoder DBV50E-22ELA1000 | 1000 Pulses/Rev | IP65 Rated | Robust Aluminum Housing | by SICK
The Measuring Wheel Encoder DBV50E-22ELA1000 offers high precision with 1,000 pulses per revolution and a robust aluminum housing. Designed for industrial automation, it operates in a wide temperature range from -20°C to +85°C, making it ideal for applications like conveyor belt monitoring and robotics. With an IP65 rating for dust and water protection, this encoder ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Measuring Wheel Encoder DBV50E-22ELA1000 | 1000 Pulses/Rev | IP65 Rated | Robust Aluminum Housing | by SICK
Brand: SICK
SKU: 1081892
Alternatively Known As: Measuring wheel encoder, incremental encoder, distance encoder, rotary encoder, industrial encoder
Technical Specifications
- Pulses per revolution: 1,000
- Resolution: 0.2 mm per pulse
- Measuring wheel circumference: 200 mm
- Duty cycle: ≤ 0.5 ± 5 %
- Initialization time: < 3 ms
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Operating power consumption: 50 mA
- Supply voltage: 7 V to 30 V
- Load current max: 30 mA
- Maximum output frequency: ≤ 300 kHz
- Reference signal position: 90°, logically gated with A and B
- Operating torque: 0.6 Ncm at 20 °C
- Maximum operating speed: 3,000 min⁻¹
- Bearing lifetime: 2.0 x 10^9 revolutions
- Enclosure rating: IP65
- Operating temperature range: -20 °C to +85 °C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 70mm x 120mm x 70mm
- Weight: 0.3 kg
Key Features
- High resolution with 1,000 pulses per revolution
- Robust aluminum housing and stainless steel shaft
- IP65 rated for dust and water protection
- Operating temperature range from -20°C to +85°C
- Reverse polarity and short-circuit protection
- Incremental HTL / Push pull communication interface
- Low power consumption with max 0.5 W
- Spring arm design with 63.5 mm arm and single measuring wheel
- Long bearing lifetime of 2.0 x 10^9 revolutions
- High shock and vibration resistance
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and mechanical mounting for accurate measurement and safety.
Applications
- Industrial automation for precise distance measurement
- Conveyor belt speed and position monitoring
- Robotics and material handling systems
- Mobile machinery and vehicle distance tracking
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption minimizes energy use
- Robust materials ensure long service life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK DBV50E-22ELA1000 measuring wheel encoder is available for immediate purchase, ideal for industrial automation and mobile machinery applications.
