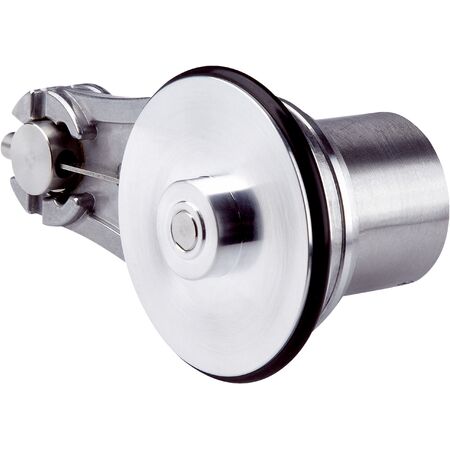

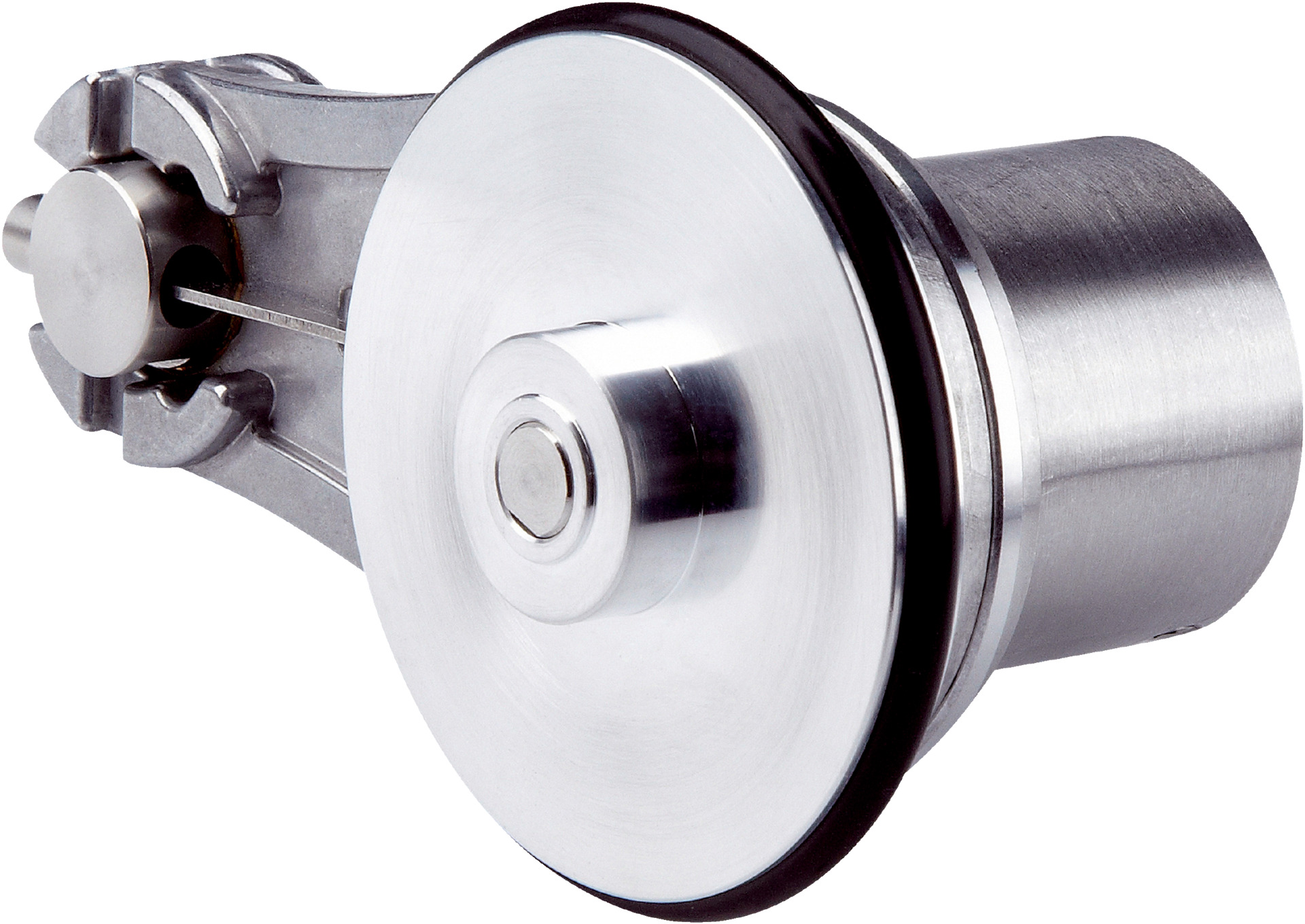

Measuring Wheel Encoder DBV50E-22ANA1000 | 1000 Pulses/Rev | IP65 Enclosure | by SICK
The Measuring Wheel Encoder DBV50E-22ANA1000 offers high precision with 1,000 pulses per revolution and a 0.2 mm measuring increment, making it ideal for industrial automation and mobile machinery applications. Built with a robust aluminum housing and an IP65 enclosure rating, it withstands harsh environments while providing reliable performance for distance measurement and monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Measuring Wheel Encoder DBV50E-22ANA1000 | 1000 Pulses/Rev | IP65 Enclosure | by SICK
Brand: SICK
SKU: 1104463
Alternatively Known As: Measuring wheel encoder, incremental encoder, distance encoder, rotary encoder, SICK encoder DBV50E
Technical Specifications
- Pulses per revolution: 1,000
- Resolution: 5 pulses/mm
- Measuring increment: 0.2 mm per pulse
- Measuring step deviation: ±18° per pulses per revolution
- Error limits: ±4 mm/m depending on wheel and surface
- Duty cycle: ≤ 0.5 ± 5%
- Initialization time: < 3 ms
- Communication interface: Incremental TTL / RS-422, 6-channel
- Operating power consumption: 50 mA (no load)
- Supply voltage: 4.5 V to 5.5 V
- Load current max: 30 mA
- Maximum output frequency: ≤ 300 kHz
- Reference signal: 1 at 90°, logically gated with A and B
- Short-circuit protection: Yes
- Measuring wheel circumference: 200 mm
- Spring arm length: 63.5 mm, encoder on left side
- Materials: Shaft stainless steel, flange aluminum, housing aluminum, cable PVC
- Start up torque: 0.9 Ncm at 20°C
- Operating torque: 0.6 Ncm at 20°C
- Operating speed: 1,500 min⁻¹
- Maximum operating speed: 3,000 min⁻¹
- Bearing lifetime: 2.0 x 10^9 revolutions
- Spring arm max deflection: 14 mm at 14 N
- Recommended pretension: 15 N at 10 mm deflection
- Service life of spring element: > 1.4 million cycles
- Mounting position: Preferably from above, from below possible
- EMC: EN 61000-6-2 and EN 61000-6-3 (class A)
- Enclosure rating: IP65
- Operating temperature range: -20°C to +85°C (up to +95°C on request)
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 100mm x 150mm x 80mm
- Weight: 0.3 kg
Key Features
- High resolution with 1,000 pulses per revolution and 0.2 mm measuring increment
- Robust aluminum housing with IP65 enclosure rating for harsh environments
- 6-channel incremental TTL/RS-422 communication interface
- Low operating power consumption of 50 mA
- Durable spring arm design with anti-corrosive spring steel and aluminum measuring wheel
- High shock and vibration resistance (100 g shock, 20 g vibration)
- Short-circuit protection on outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection for accurate measurement and safety compliance.
Applications
- Industrial automation for precise distance measurement
- Conveyor belt speed and position monitoring
- Mobile machinery and vehicle distance tracking
- Robotics and material handling systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DBV50E-22ANA1000 measuring wheel encoder is available for immediate purchase, ideal for industrial automation and mobile machinery applications requiring precise distance measurement.
