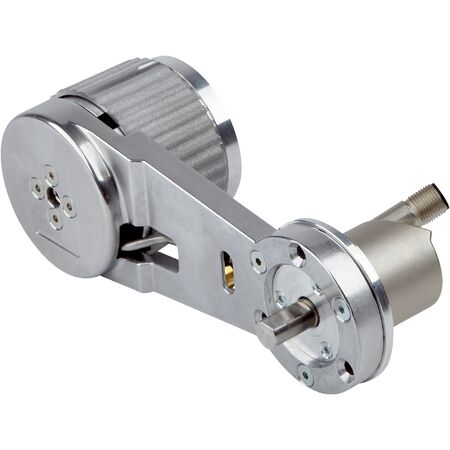

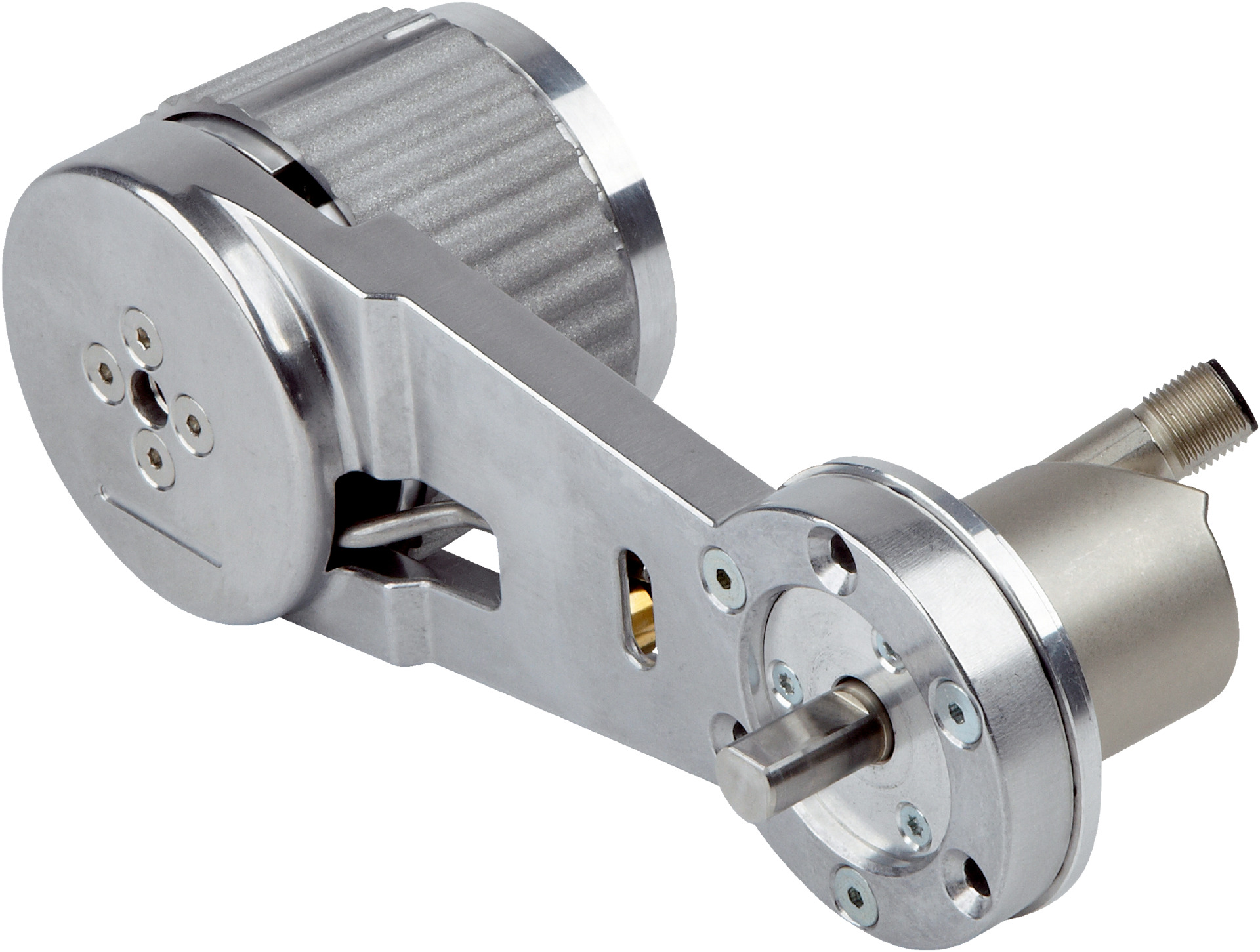

Measuring Wheel Encoder | 14 Bit x 12 Bit Resolution | IO-Link V1.1 | Durable Stainless Steel & Aluminum | by SICK
The Measuring Wheel Encoder offers high precision with a 14 bit x 12 bit resolution, making it ideal for industrial automation and safety monitoring. Designed for harsh environments, it operates within -30°C to +80°C and features low power consumption and reverse polarity protection. Perfect for applications in conveyor systems and material handling, this encoder ensures reliable performance and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- MTTFD (mean time to dangerous failure): 240 years (EN ISO 13849-1)
- Max. resolution: 14 bit x 12 bit (16,384 x 4,096)
- Repeatability: < 0.1 mm
- Communication interface: IO-Link V1.1 / COM3 (230.4 kBaud)
- Connection type: Male connector, M12, 4-pin, universal
- Power consumption: ≤ 1.5 W
- Supply voltage: 18 V to 30 V
- Reverse polarity protection: Yes
- Mounting: Measuring wheel mounted at the front
- Spring element material: Stainless steel
- Measuring wheel and spring arm material: Aluminum
- Start up and operating torque: < 1 Ncm
- Bearing lifetime: 3.6 x 10^8 revolutions
- Minimum spring tension force: 4 N
- Max permissible working area for spring: ± 10 mm
- Service life of spring element: > 1.5 million cycles
- Mounting position: Preferably from above, from below possible
- Operating temperature range: -30 °C to +80 °C
- Storage temperature range: -40 °C to +100 °C
- EMC: According to EN 61000-6-2, EN 61000-6-3, EN 61131-9
- Dimensions (H x L x W): 120mm x 120mm x 120mm
- Weight: 0.5 kg
Key Features
- High resolution with 14 bit x 12 bit (16,384 x 4,096) steps per revolution
- Repeatability less than 0.1 mm
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Low power consumption ≤ 1.5 W with supply voltage 18 V to 30 V
- Reverse polarity protection included
- Durable mechanics with stainless steel spring element and aluminum measuring wheel
- Long bearing lifetime of 3.6 x 10^8 revolutions
- Spring arm mechanism with service life over 1.5 million cycles
- Operating temperature range from -30°C to +80°C
- EMC compliant according to EN 61000-6-2, EN 61000-6-3, and EN 61131-9
