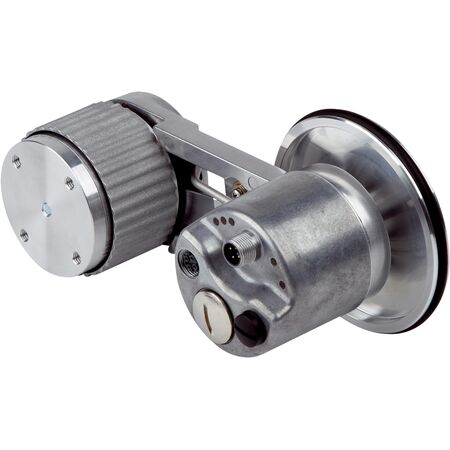

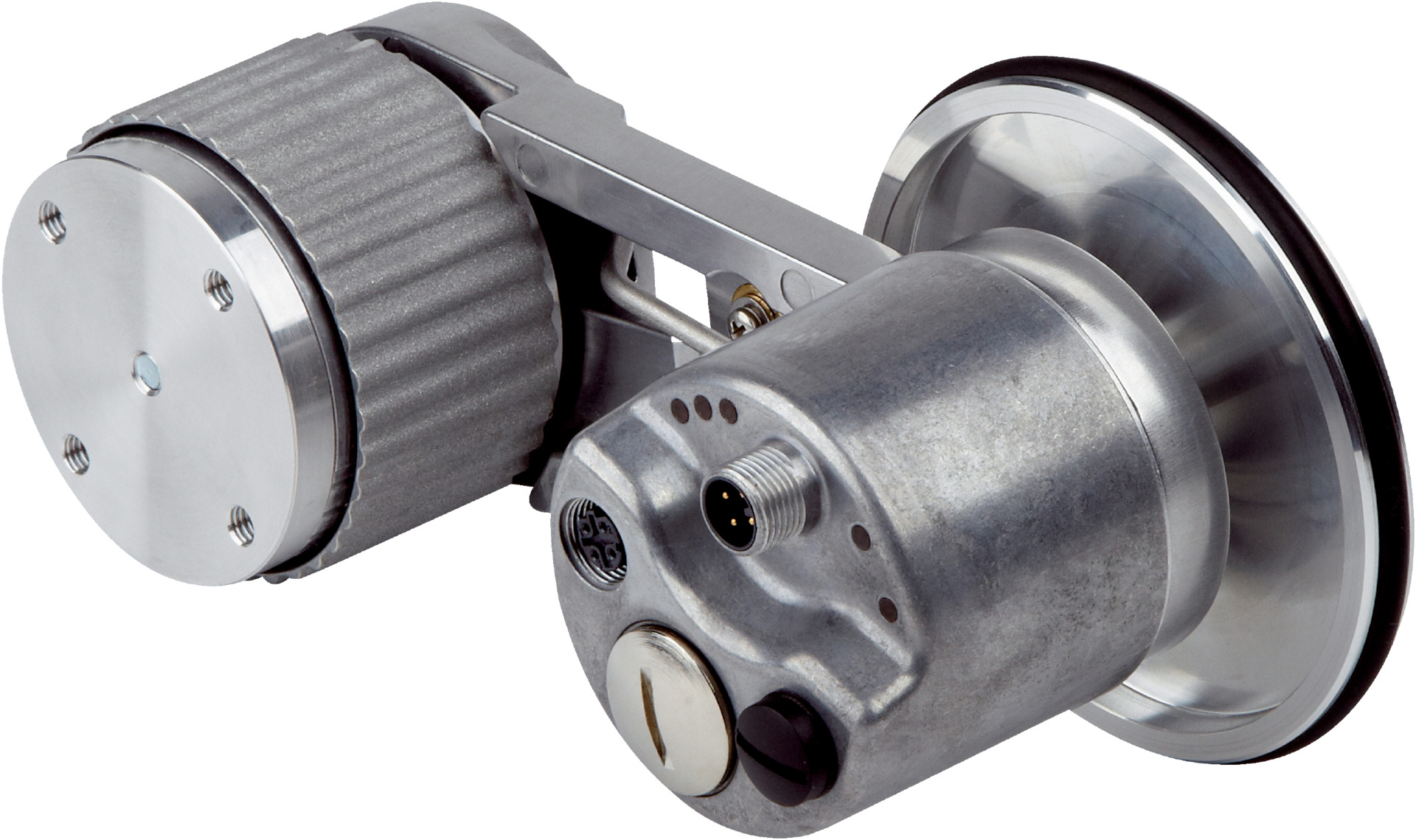

Measuring Wheel Encoder MWS120-3DN2NF18X12 | 18 Bit x 12 Bit Resolution | PROFINET Interface | Durable Aluminum Design | by SICK
The MWS120-3DN2NF18X12 measuring wheel encoder delivers high precision with an 18 bit x 12 bit resolution and a measuring increment of just 0.002 mm per pulse. Ideal for industrial automation, this encoder features a robust aluminum design and a PROFINET communication interface, ensuring reliable performance in various applications such as conveyor monitoring and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Measuring Wheel Encoder MWS120-3DN2NF18X12 | 18 Bit x 12 Bit Resolution | PROFINET Interface | Durable Aluminum Design | by SICK
Brand: SICK
SKU: 1153856
Alternatively Known As: Measuring wheel encoder, rotary encoder wheel, industrial measuring wheel sensor
Technical Specifications
- Max. resolution: 18 bit x 12 bit (262,144 x 4,096)
- Measuring increment: 0.002 mm per pulse
- Repeatability: < 0.1 mm
- Communication interface: PROFINET
- Supply voltage: 10 V DC to 30 V DC
- Connection type: Male and female M12, 4-pin axial connectors
- Measuring wheel circumference: 500 mm
- Measuring wheel surface: Smooth plastic
- Operating temperature range: -30°C to +80°C
- Storage temperature range: -40°C to +100°C
- Bearing lifetime: 3.0 x 10^9 revolutions
- Spring element material: Stainless steel
- Measuring wheel and spring arm material: Aluminum
- Start up torque: 0.5 Ncm
- Operating torque: 0.3 Ncm
- Minimum spring tension force: 4 N
- Max permissible spring working area: ± 10 mm
- Service life of spring element: > 1.5 million cycles
- Dimensions (H x L x W): 120mm x 180mm x 120mm
- Weight: 1.5 kg
Key Features
- High resolution with 18 bit x 12 bit steps per revolution
- Measuring increment resolution of 0.002 mm per pulse
- Repeatability less than 0.1 mm
- PROFINET communication interface with programmable configuration
- Durable mechanics with aluminum measuring wheel and stainless steel spring element
- Wide operating temperature range from -30°C to +80°C
- Long bearing lifetime of 3.0 x 10^9 revolutions
- Spring arm mechanism with over 1.5 million cycles service life
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial encoder systems and PROFINET network setup to ensure accurate configuration and safety compliance.
Applications
- Industrial automation for precise distance measurement
- Conveyor belt monitoring and control
- Material handling and logistics systems
- Robotics and automated guided vehicles (AGVs)
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- High precision measurement reduces material waste and improves process efficiency
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK MWS120-3DN2NF18X12 measuring wheel encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
