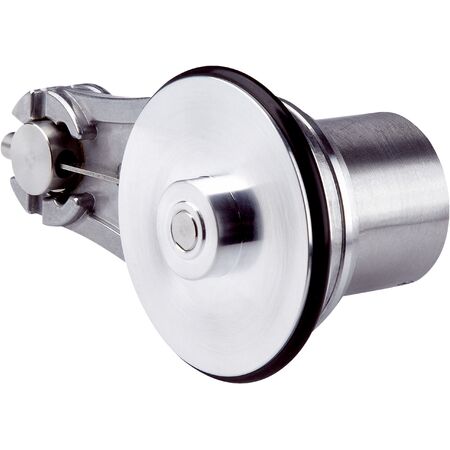

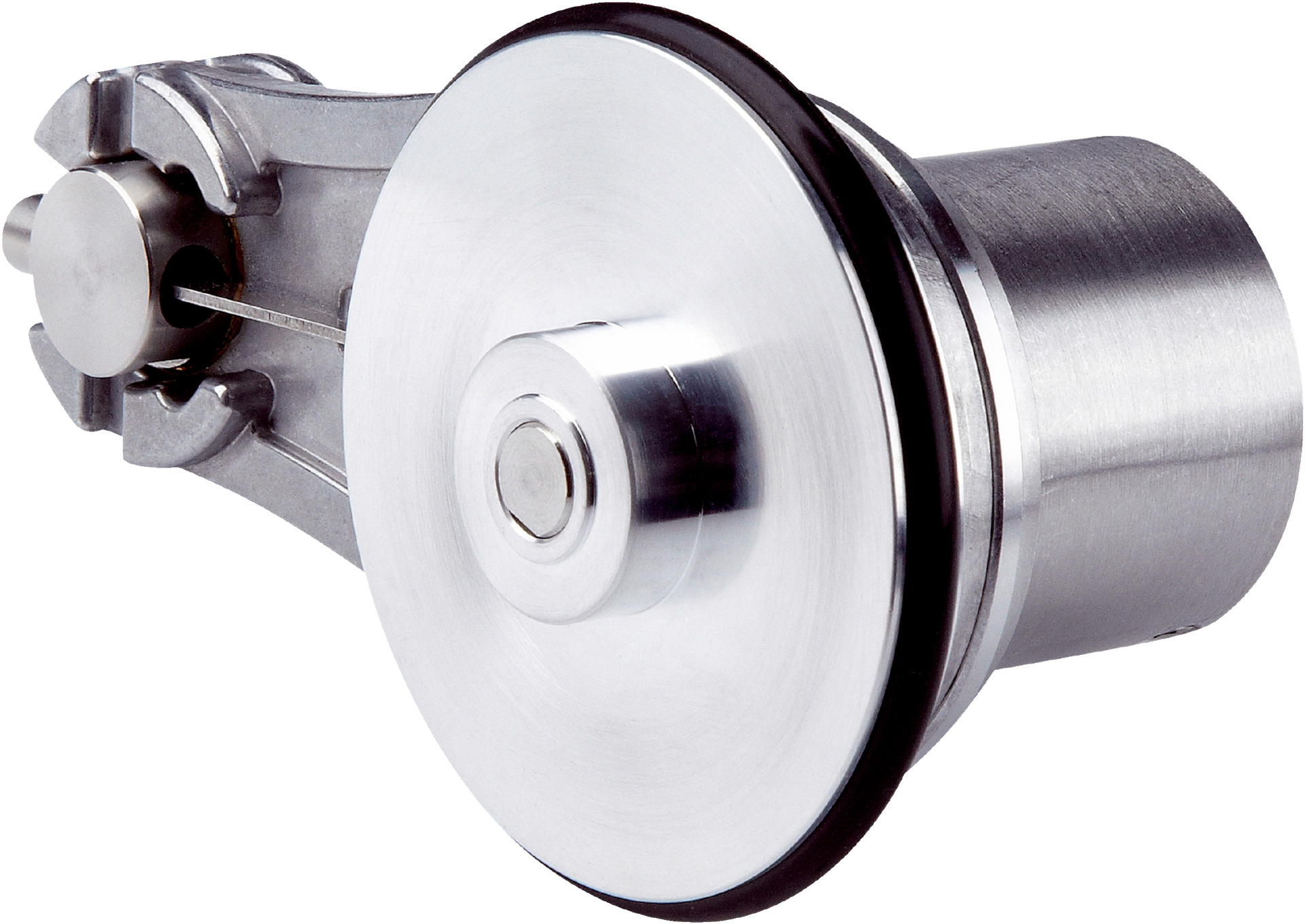

Measuring Wheel Encoder | 20 Pulses/Rev | IP65 Enclosure | -20°C to +85°C | by SICK
The Measuring Wheel Encoder offers high precision with 20 pulses per revolution and a resolution of 0.01 pulses/mm, making it ideal for industrial automation and mobile machinery applications. Built to withstand harsh environments, it features a robust aluminum housing with an IP65 rating and operates effectively in temperatures ranging from -20°C to +85°C. With low power consumption and reverse polarity protection, this encoder ensures reliable performance in various settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Measuring Wheel Encoder | 20 Pulses/Rev | IP65 Enclosure | -20°C to +85°C | by SICK
Brand: SICK
SKU: 1079600
Alternatively Known As: Measuring wheel encoder, incremental encoder, distance encoder, rotary encoder, SICK encoder
Technical Specifications
- Pulses per revolution: 20
- Resolution: 0.01 pulses/mm
- Measuring increment: 10 mm per pulse
- Measuring step deviation: ±18° per pulse
- Error limits: ±4 mm/m depending on wheel and surface
- Duty cycle: ≤ 0.5 ± 5%
- Initialization time: < 3 ms
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Operating power consumption (no load): 50 mA
- Power consumption max without load: ≤ 0.5 W
- Supply voltage: 7 V to 30 V
- Load current max: 30 mA
- Maximum output frequency: ≤ 300 kHz
- Reference signal: 1, 90° electric, logically gated with A and B
- Reverse polarity protection and short-circuit protection included
- Measuring wheel circumference: 200 mm
- Spring arm length: 63.5 mm, encoder on left side
- Materials: Stainless steel shaft, aluminum flange and housing, PVC cable
- Operating torque: 0.6 Ncm at 20°C
- Maximum operating speed: 3000 min⁻¹
- Bearing lifetime: 2.0 x 10^9 revolutions
- Enclosure rating: IP65
- Operating temperature range: -20°C to +85°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2000 Hz
- Dimensions (H x L x W): 100mm x 150mm x 100mm
- Weight: 0.3 kg
Key Features
- High resolution with 20 pulses per revolution and 0.01 pulses/mm
- Robust aluminum housing with IP65 enclosure rating
- Operating temperature range from -20°C to +85°C
- Incremental communication interface with TTL / RS-422
- Low power consumption with max 0.5 W
- Reverse polarity and short-circuit protection
- Durable spring arm design with stainless steel shaft and aluminum flange
- Long bearing lifetime of 2.0 x 10^9 revolutions
- High resistance to shocks (100 g) and vibration (20 g)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and calibration for accurate measurement.
Applications
- Industrial automation for precise distance measurement
- Conveyor belt speed and position monitoring
- Mobile machinery and vehicle distance tracking
- Robotics and material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption minimizes energy use
- Robust construction ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DBV50E-22CKA0020 measuring wheel encoder is available for immediate purchase, ideal for industrial automation and mobile machinery applications.
