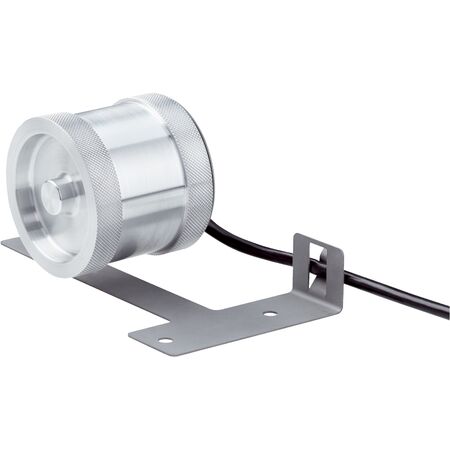

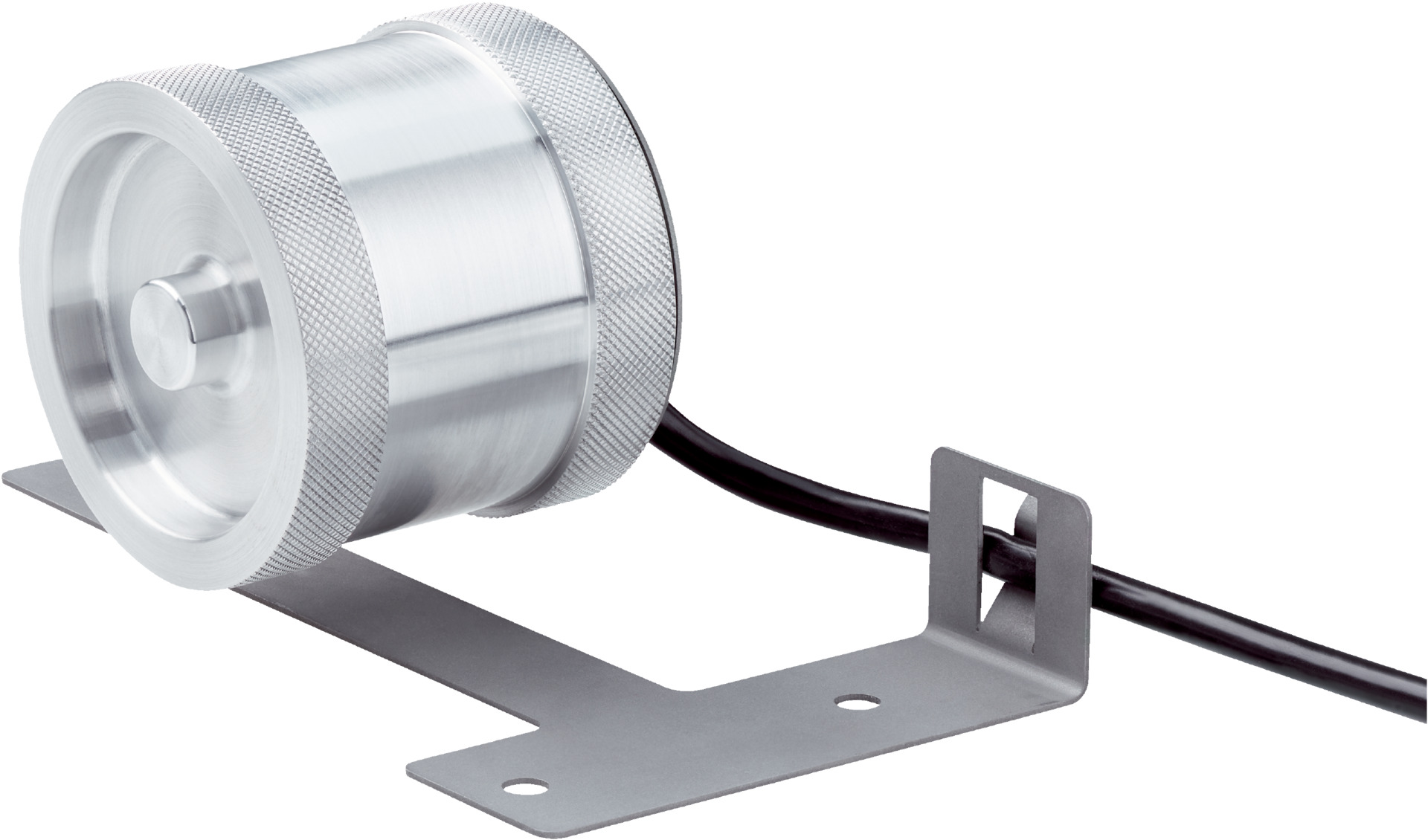

Measuring Wheel Encoder DKV60E-21EPA0020 | 20 Pulses/Rev | IP65 Rated | Durable Aluminum & Stainless Steel | by SICK
The Measuring Wheel Encoder DKV60E-21EPA0020 offers high precision with 20 pulses per revolution and a resolution of 0.1 pulses/mm, making it ideal for industrial automation and mobile machinery applications. Built with a robust aluminum housing and stainless steel shaft, it ensures durability and reliability in demanding environments, while its IP65 rating provides protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Measuring Wheel Encoder DKV60E-21EPA0020 | 20 Pulses/Rev | IP65 Rated | Durable Aluminum & Stainless Steel | by SICK
Brand: SICK
SKU: 1115706
Alternatively Known As: Measuring wheel encoder, incremental encoder, distance encoder, rotary encoder
Technical Specifications
- Pulses per revolution: 20
- Resolution: 0.1 pulses/mm
- Measuring increment: 10 mm per pulse
- Measuring step deviation: ±18° per pulses per revolution
- Error limits: ±0.5 mm/m depending on wheel and surface
- Duty cycle: ≤ 0.5 ± 5%
- Initialization time: ≤ 3 ms
- Communication interface: Incremental TTL / RS-422
- Number of signal channels: 6
- Operating power consumption: 50 mA (no load)
- Supply voltage: 10 V to 30 V
- Load current max: 30 mA
- Maximum output frequency: ≤ 300 kHz
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection: Yes
- Measuring wheel circumference: 200 mm
- Materials: Shaft - stainless steel, Flange - aluminum, Housing - aluminum, Cable - PVC
- Spring arm: 69.5 mm, spring steel, anti-corrosive
- Start up torque: 0.9 Ncm at 20 °C
- Operating torque: 0.4 Ncm at 20 °C
- Operating speed: ≤ 1,000 min⁻¹, max 1,500 min⁻¹
- Bearing lifetime: 2 x 10^9 revolutions
- Maximum spring arm deflection: 8 mm at 14 N
- Recommended pretension: 8 N at 4 mm deflection
- EMC: EN 61000-6-2 and EN 61000-6-3 (class A)
- Enclosure rating: IP65
- Operating temperature range: -20 °C to +60 °C (up to +95 °C on request)
- Storage temperature range: -40 °C to +100 °C
- Shock resistance: 50 g, 7 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 70mm x 120mm x 70mm
- Weight: 0.42 kg
Key Features
- High resolution with 20 pulses per revolution and 0.1 pulses/mm
- Robust aluminum housing and stainless steel shaft for durability
- IP65 rated enclosure for protection against dust and water
- Incremental TTL/RS-422 communication interface with 6 signal channels
- Low operating power consumption of 50 mA
- Spring arm mechanism with anti-corrosive spring steel
- High shock and vibration resistance (50 g shock, 20 g vibration)
- Reverse polarity and short-circuit protection on outputs
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper mounting, wiring, and calibration for accurate measurement.
Applications
- Industrial automation for precise distance measurement
- Conveyor belt speed and position monitoring
- Mobile machinery and vehicle distance tracking
- Robotics and material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and long bearing lifetime reduce waste and replacement frequency
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK DKV60E-21EPA0020 measuring wheel encoder is available for immediate purchase, ideal for industrial automation and mobile machinery applications.
