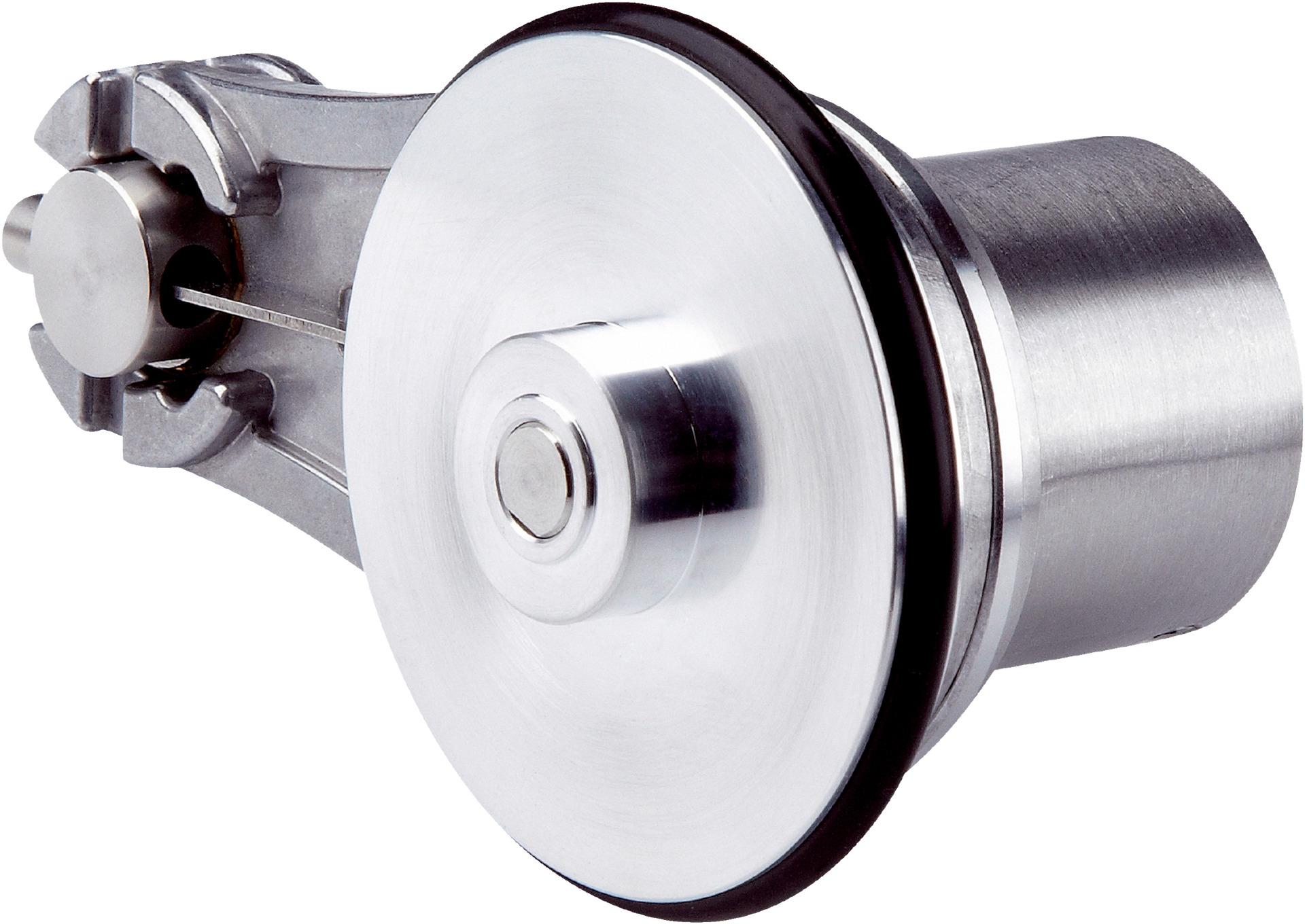

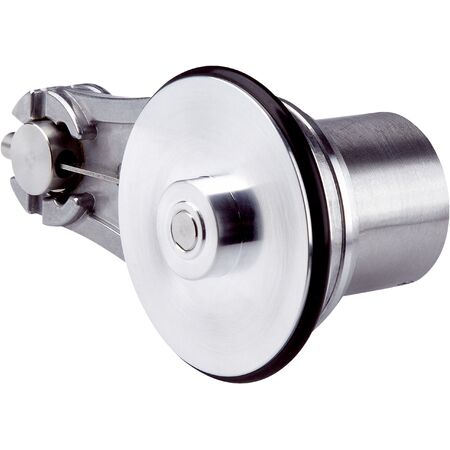

Measuring Wheel Encoder DBV50E-22EKA2000 | 2000 Pulses/Rev | IP65 Enclosure | by SICK
The Measuring Wheel Encoder DBV50E-22EKA2000 offers high precision with 2000 pulses per revolution and a measuring increment of 0.1 mm per pulse. Designed for industrial automation, it features a robust aluminum housing with an IP65 enclosure rating, ensuring durability in harsh environments. Ideal for applications like conveyor belt monitoring and robotics, this encoder guarantees reliable performance and long bearing lifetime.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Measuring Wheel Encoder DBV50E-22EKA2000 | 2000 Pulses/Rev | IP65 Enclosure | by SICK
Brand: SICK
SKU: 1079595
Alternatively Known As: Measuring wheel encoder, incremental encoder, rotary encoder, distance measurement encoder
Technical Specifications
- Pulses per revolution: 2,000
- Resolution: 10 pulses/mm
- Measuring increment: 0.1 mm per pulse
- Error limits: ±4 mm/m depending on wheel and surface
- Duty cycle: ≤ 0.5 ± 5%
- Initialization time: < 3 ms
- Communication interface: Incremental HTL / Push pull
- Number of signal channels: 6
- Operating power consumption (no load): 50 mA
- Supply voltage: 7 V to 30 V
- Load current max: 30 mA
- Maximum output frequency: ≤ 300 kHz
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Reverse polarity and short-circuit protection included
- Measuring wheel circumference: 200 mm
- Materials: Shaft - stainless steel, Flange - aluminum, Housing - aluminum, Cable - PVC
- Spring arm: 63.5 mm, aluminum with spring steel element
- Start up torque: 0.9 Ncm at 20°C
- Operating torque: 0.6 Ncm at 20°C
- Operating speed: 1,500 min⁻¹, max 3,000 min⁻¹
- Bearing lifetime: 2.0 x 10^9 revolutions
- Maximum spring arm deflection: 14 mm at 14 N
- Recommended pretension: 15 N at 10 mm deflection
- EMC compliance: EN 61000-6-2 and EN 61000-6-3 (class A)
- Enclosure rating: IP65
- Operating temperature range: -20°C to +85°C (up to +95°C on request)
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 100mm x 150mm x 70mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,000 pulses per revolution
- Measuring increment of 0.1 mm per pulse
- Robust aluminum housing with IP65 enclosure rating
- Operating temperature range from -20°C to +85°C
- Reverse polarity and short-circuit protection
- 6-channel incremental HTL / Push pull communication interface
- Long bearing lifetime of 2.0 x 10^9 revolutions
- Spring arm design with corrosion-resistant spring steel
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connections for optimal performance and safety.
Applications
- Industrial automation for precise distance measurement
- Conveyor belt speed and position monitoring
- Material handling and logistics systems
- Robotics and automated guided vehicles (AGVs)
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Low power consumption of ≤ 0.5 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DBV50E-22EKA2000 measuring wheel encoder is available for immediate purchase, ideal for industrial automation and precise measurement applications.
