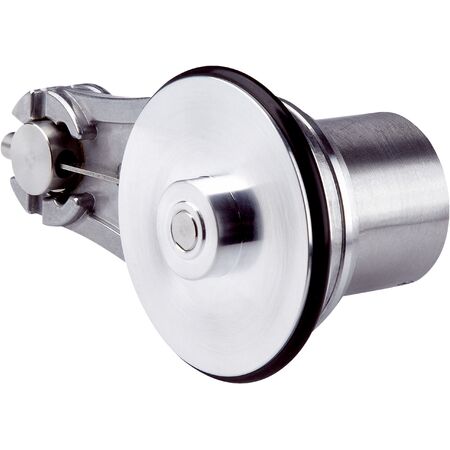

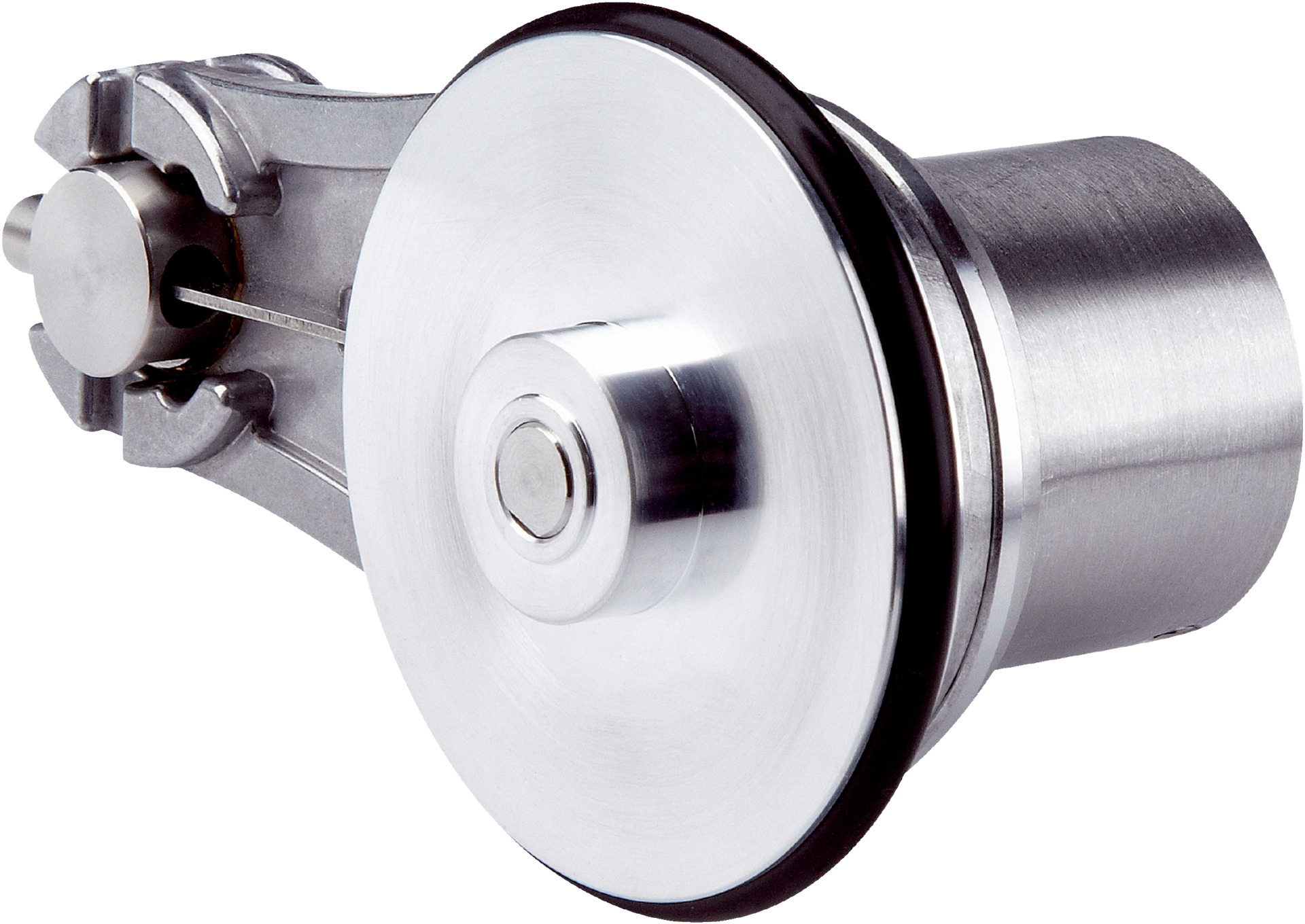

Measuring Wheel Encoder DBV50E-22APA2000 | 2000 Pulses/Rev | IP65 Enclosure | by SICK
The Measuring Wheel Encoder DBV50E-22APA2000 offers high precision with 2000 pulses per revolution and a measuring increment of 0.1 mm per pulse. Designed for industrial automation, it excels in applications like conveyor belt monitoring and robotics. With a robust aluminum housing and IP65 rating, it ensures durability and reliability in various environments, making it perfect for precise distance measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Measuring Wheel Encoder DBV50E-22APA2000 | 2000 Pulses/Rev | IP65 Enclosure | by SICK
Brand: SICK
SKU: 1082277
Alternatively Known As: Measuring wheel encoder, incremental encoder, distance encoder, rotary encoder, SICK encoder DBV50E
Technical Specifications
- Pulses per revolution: 2,000
- Resolution: 10 pulses/mm
- Measuring increment: 0.1 mm per pulse
- Measuring step deviation: ±18° per pulses per revolution
- Error limits: ±4 mm/m depending on wheel and surface
- Duty cycle: ≤ 0.5 ± 5%
- Initialization time: < 3 ms
- Communication interface: Incremental TTL / RS-422, 6-channel
- Operating power consumption: 50 mA (no load)
- Supply voltage: 4.5 V to 5.5 V
- Load current max: 30 mA
- Maximum output frequency: ≤ 300 kHz
- Reference signal: 1, positioned at 90°, logically gated with A and B
- Short-circuit protection: Yes
- Measuring wheel circumference: 200 mm
- Materials: Shaft - stainless steel, Flange - aluminum, Housing - aluminum, Cable - PVC
- Spring arm: 63.5 mm, aluminum with spring steel element
- Start up torque: 0.9 Ncm at 20°C
- Operating torque: 0.6 Ncm at 20°C
- Operating speed: 1,500 min⁻¹
- Maximum operating speed: 3,000 min⁻¹
- Bearing lifetime: 2.0 x 10^9 revolutions
- Maximum spring arm deflection: 14 mm at 14 N
- Recommended pretension: 15 N at 10 mm deflection
- Service life of spring element: > 1.4 million cycles
- Mounting position: Preferably from above, from below possible
- EMC: Compliant with EN 61000-6-2 and EN 61000-6-3 (class A)
- Enclosure rating: IP65
- Permissible relative humidity: 90% (no condensation)
- Operating temperature range: -20°C to +85°C (extended range on request)
- Storage temperature range: -40°C to +100°C
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- Dimensions (H x L x W): 100mm x 120mm x 70mm
- Weight: 0.3 kg
Key Features
- High resolution with 2,000 pulses per revolution
- Measuring increment of 0.1 mm per pulse
- Robust aluminum housing and stainless steel shaft
- IP65 rated enclosure for dust and water resistance
- Operating temperature range from -20°C to +85°C
- Short-circuit protection on outputs
- 6-channel incremental TTL/RS-422 communication interface
- Low operating power consumption of 50 mA
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with incremental encoders and electrical wiring standards to ensure proper setup and safety.
Applications
- Industrial automation for precise distance measurement
- Conveyor belt speed and position monitoring
- Robotics and material handling systems
- Mobile machinery and vehicle distance tracking
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and long service life reduce waste and replacement frequency
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK DBV50E-22APA2000 measuring wheel encoder is available for immediate purchase, ideal for industrial automation and precise distance measurement applications.
